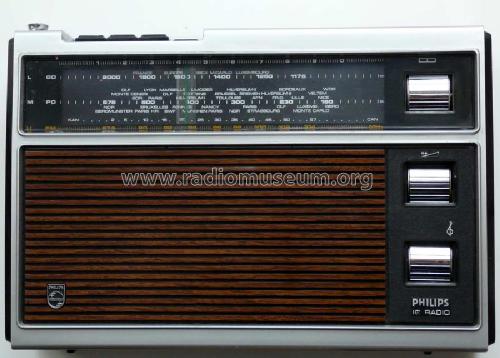

50IC420; Philips France; (ID = 1558043) Radio
Philips France;: 50IC420 [Radio] ID = 1558043 900x646
Select picture or schematic to display from thumbnails on the right and click for download.
For model 50IC420, Philips France; Paris:
PHILIPS 50IC420

Country:  France
Manufacturer / Brand:  Philips France; Paris
Year: 1972/1973 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 5: BF194 BF195 BF194 AC187 AC188 TBA570 BA220 BA102 BA216 AA119 AA119 OF162
Main principle Super-Heterodyne (Super in general); ZF/IF 452/10700 kHz
Wave bands Broadcast, Long Wave and FM or UHF.
Details
Power type and voltage Dry Batteries / 4 x 1.5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out 0.5 W (unknown quality)
from Radiomuseum.org Model: 50IC420 - Philips France; Paris
Material Modern plastics (no Bakelite or Catalin)
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 296 x 198 x 83 mm / 11.7 x 7.8 x 3.3 inch
Notes

3 gammes d'ondes PO, GO, FM. Clavier 4 touches. Antenne télescopique. Prise REC laterale. Commutation PU en enfonçant ensemble les touches PO et GO.

Coffret polystyrène, poignée escamotable.

Équivalent au Radiola RA420.

Net weight (2.2 lb = 1 kg) 1.8 kg / 3 lb 15.4 oz (3.965 lb)
Price in first year of sale 270.00 FRF
Mentioned in Le grand livre de la TSF (Doctsf Ref 8044)

Model page created by Olivier Palix. See "Data change" for further contributors.
