522A

522A; Philips France; (ID = 98477) Radio 522A; Philips France; (ID = 98478) Radio
522A; Philips France; (ID = 98479) Radio 522A; Philips France; (ID = 98480) Radio
522A; Philips France; (ID = 493182) Radio 522A; Philips France; (ID = 493183) Radio
522A; Philips France; (ID = 493184) Radio 522A; Philips France; (ID = 670267) Radio
522A; Philips France; (ID = 670269) Radio 522A; Philips France; (ID = 670270) Radio
Use red slider bar for more.

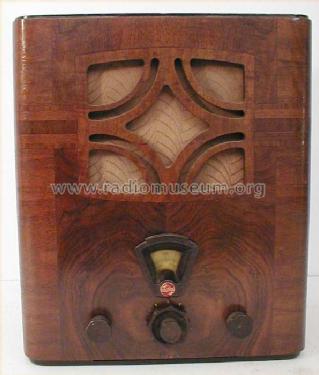

522A; Philips France; (ID = 98477) Radio
Philips France;: 522A [Radio] ID = 98477 596x700
Select picture or schematic to display from thumbnails on the right and click for download.
For model 522A, Philips France; Paris

Country:  France
Manufacturer / Brand:  Philips France; Paris
Year: 1934 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: AK1 AF2 E446 AB1 E443H 506
Main principle Super-Heterodyne (Super in general); ZF/IF 104/115 kHz
Tuned circuits 7 AM circuit(s)
Wave bands Broadcast (MW) and Long Wave.
Details
Power type and voltage Alternating Current supply (AC) / 103-253 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: 522A - Philips France; Paris
Material Wooden case
Shape Tablemodel, high profile (upright - NOT Cathedral nor decorative).
Dimensions (WHD) 350 x 400 x 210 mm / 13.8 x 15.7 x 8.3 inch
Net weight (2.2 lb = 1 kg) 9.6 kg / 21 lb 2.3 oz (21.145 lb)
Price in first year of sale 1'525.00 F
Source of data Les Radio PHILIPS de collection

Model page created by Patrice Zeissloff. See "Data change" for further contributors.
