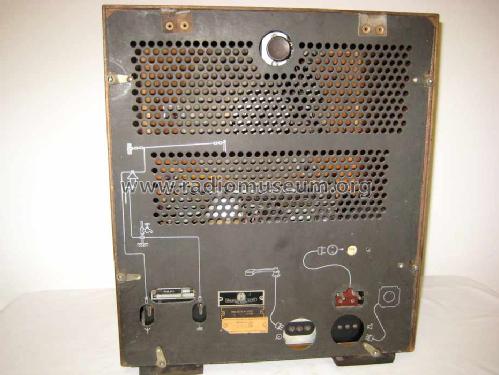

Philips Radios -: 525A [Radio] ID = 1357508 933x700
Select picture or schematic to display from thumbnails on the right and click for download.
For model 525A output E443H, Philips Radios - Deutschland

Country:  Germany
Manufacturer / Brand:  Philips Radios - Deutschland
Brand

Deutsche Philips-Ges.
Year: 1936/1937 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: AK1 AF2 AB1 E446 E443H 506
Main principle Superheterodyne (common); ZF/IF 115 kHz; 2 AF stage(s)
Tuned circuits 7 AM circuit(s)
Wave bands Broadcast (MW) and Long Wave.
Details
Power type and voltage Alternating Current supply (AC)
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out 3.1 W (unknown quality)
from Radiomuseum.org Model: 525A [output E443H] - Philips Radios - Deutschland
Material Wooden case
Shape Tablemodel, high profile (upright - NOT Cathedral nor decorative).
Source of data Radiokatalog Band 1, Ernst Erb

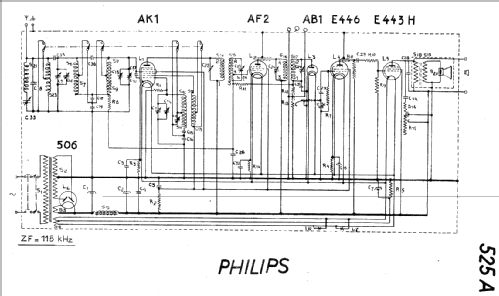

Circuit diagram reference Lange + FS-Bestückungstabellen


All listed radios etc. from Philips Radios - Deutschland
