526A

526A; Philips France; (ID = 318939) Radio

526A; Philips France; (ID = 318940) Radio
526A; Philips France; (ID = 1678558) Radio 526A; Philips France; (ID = 354531) Radio
526A; Philips France; (ID = 354532) Radio 526A; Philips France; (ID = 432443) Radio
526A; Philips France; (ID = 1577478) Radio 526A; Philips France; (ID = 1678559) Radio
526A; Philips France; (ID = 1678560) Radio 526A; Philips France; (ID = 1678561) Radio
526A; Philips France; (ID = 1678562) Radio 526A; Philips France; (ID = 1809631) Radio
Use red slider bar for more.
526A; Philips France; (ID = 1678558) Radio
Philips France;: 526A [Radio] ID = 1678558 933x891
Select picture or schematic to display from thumbnails on the right and click for download.
For model 526A, Philips France; Paris

Country:  France
Manufacturer / Brand:  Philips France; Paris
Year: 1935 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: AK1 AF2 AB1 E446 E443H 506
Main principle Super-Heterodyne (Super in general); ZF/IF 115 kHz
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast (MW) and Long Wave.
Details
Power type and voltage Alternating Current supply (AC) / 110-240 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 21 cm = 8.3 inch
Power out
from Radiomuseum.org Model: 526A - Philips France; Paris
Material Wooden case
Shape Tablemodel, high profile (upright - NOT Cathedral nor decorative).
Dimensions (WHD) 390 x 450 x 260 mm / 15.4 x 17.7 x 10.2 inch
Notes Lautsprecher Type 4283 mit 10 Ohm
Net weight (2.2 lb = 1 kg) 11.7 kg / 25 lb 12.3 oz (25.771 lb)
Price in first year of sale 1'750.00 FF
Collectors' prices

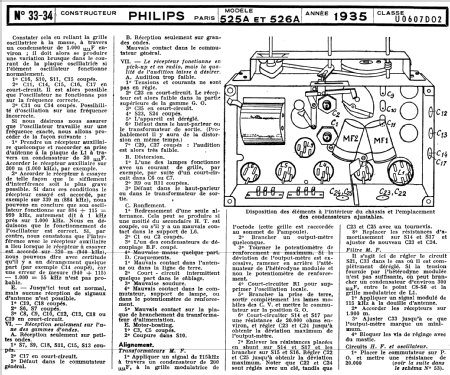

Literature/Schematics (1) Schémathèque Toute la Radio (STR)

Model page created by Peter Hoddow. See "Data change" for further contributors.



All listed radios etc. from Philips France; Paris
Here you find 545 models, 482 with images and 297 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
