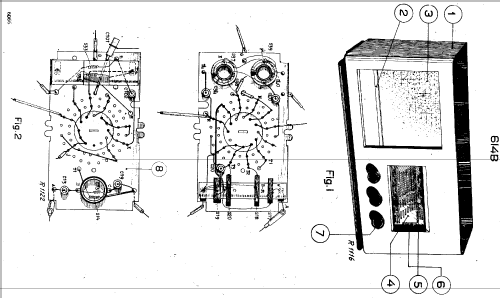

614B12; Philips; Eindhoven (ID = 41127) Radio

614B12; Philips; Eindhoven (ID = 41128) Radio

614B12; Philips; Eindhoven (ID = 41129) Radio
614B12; Philips; Eindhoven (ID = 252400) Radio 614B12; Philips; Eindhoven (ID = 874432) Radio
614B12; Philips; Eindhoven (ID = 874431) Radio 614B12; Philips; Eindhoven (ID = 874433) Radio
614B12; Philips; Eindhoven (ID = 31717) Radio 614B12; Philips; Eindhoven (ID = 874434) Radio
Use red slider bar for more.
614B12; Philips; Eindhoven (ID = 252400) Radio
Philips; Eindhoven: 614B12 [Radio] ID = 252400 752x480
Select picture or schematic to display from thumbnails on the right and click for download.
For model 614B12, Philips; Eindhoven (tubes international!); Miniwatt

Country:  Netherlands
Manufacturer / Brand:  Philips; Eindhoven (tubes international!); Miniwatt
Year: 1940/1941 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 4: DK21 DF21 DAC21 DL21
Main principle Superheterodyne (common); ZF/IF 473 kHz
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage Dry Batteries / 120 & 2 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 20 cm = 7.9 inch
Power out
from Radiomuseum.org Model: 614B12 - Philips; Eindhoven tubes
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 510 x 270 x 200 mm / 20.1 x 10.6 x 7.9 inch
Net weight (2.2 lb = 1 kg) 7.4 kg / 16 lb 4.8 oz (16.3 lb)
Price in first year of sale 123.00 Hfl
Source of data -- Original-techn. papers.

Model page created by Iven Müller. See "Data change" for further contributors.
