614B-44

614B-44; Philips; Eindhoven (ID = 1008414) Radio
614B-44; Philips; Eindhoven (ID = 1008170) Radio 614B-44; Philips; Eindhoven (ID = 1008171) Radio
614B-44; Philips; Eindhoven (ID = 1008173) Radio 614B-44; Philips; Eindhoven (ID = 1008174) Radio
614B-44; Philips; Eindhoven (ID = 1008175) Radio
Use red slider bar for more.

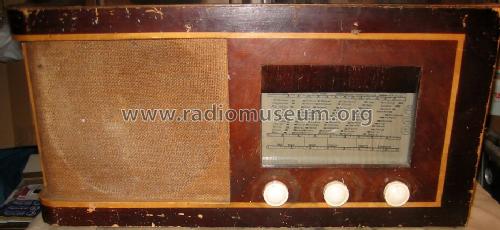

614B-44; Philips; Eindhoven (ID = 1008170) Radio
Philips; Eindhoven: 614B-44 [Radio] ID = 1008170 933x430
Select picture or schematic to display from thumbnails on the right and click for download.
For model 614B-44, Philips; Eindhoven (tubes international!); Miniwatt:

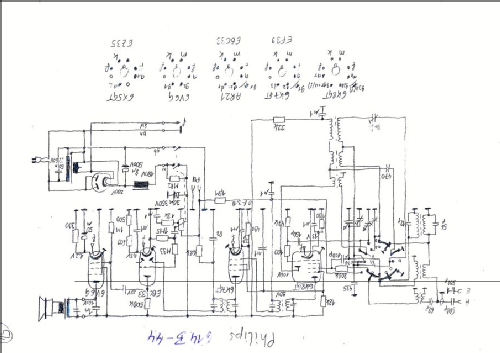

614B-44_Modell-Umbaut auf 220V Wechselstrombetrieb

Country:  Netherlands
Manufacturer / Brand:  Philips; Eindhoven (tubes international!); Miniwatt
Year: 1940 ? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 4: DK21 DF21 DAC21 DL21
Main principle Superheterodyne (common)
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage Storage and/or dry batteries / 1,4 or 2 & 120 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 20 cm = 7.9 inch
Power out
from Radiomuseum.org Model: 614B-44 - Philips; Eindhoven tubes
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 510 x 225 x 180 mm / 20.1 x 8.9 x 7.1 inch

Model page created by Klemens Rhode. See "Data change" for further contributors.
