614B; Philips Radios - (ID = 5186) Radio
614B; Philips Radios - (ID = 317446) Radio 614B; Philips Radios - (ID = 317447) Radio
614B; Philips Radios - (ID = 317448) Radio 614B; Philips Radios - (ID = 37254) Radio
614B; Philips Radios - (ID = 37255) Radio
Use red slider bar for more.
614B; Philips Radios - (ID = 317446) Radio
Philips Radios -: 614B [Radio] ID = 317446 933x700
Select picture or schematic to display from thumbnails on the right and click for download.
For model 614B, Philips Radios - Deutschland

Country:  Germany
Manufacturer / Brand:  Philips Radios - Deutschland
Brand

Deutsche Philips-Ges.
Year: 1940/1941 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 4: DK21 DF21 DAC21 DL21
Main principle Superheterodyne (common); ZF/IF 473 kHz
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage Dry Batteries / 1,4 or 2 & ? Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: 614B - Philips Radios - Deutschland
Material Wooden case
Shape Tablemodel, low profile (big size).
Source of data Radiokatalog Band 1, Ernst Erb

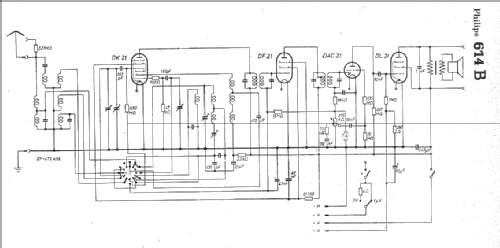

Circuit diagram reference Lange+Schenk+FS-Röhrenbestückung
