• Country
• France

• Manufacturer / Brand
• Philips France; Paris

• Year
• 1933

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 97569

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 8

• Valves / Tubes
• E455 E455 E452T E444 E499 E499 E463 506

• Main principle
• TRF without regeneration

• Tuned circuits
• 4 AM circuit(s)

• Wave bands
• Broadcast (MW) and Long Wave.

• Power type and voltage

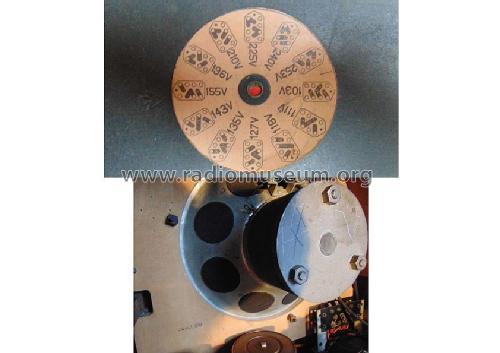

• Alternating Current supply (AC) / 103; 111; 118; 127; 135; 143; 155; 196; 210; 225; 240; 253 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 24 cm = 9.4 inch

• Material
• Wooden case

• from Radiomuseum.org

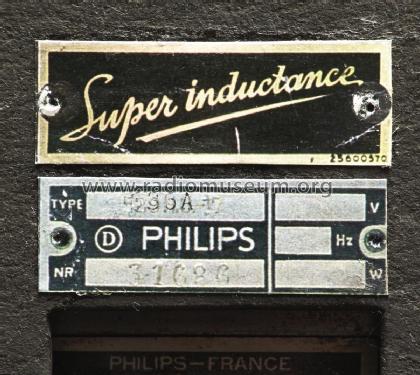

• Model: Super inductance 636A - Philips France; Paris

• Shape
• Table-Cathedral-Type (upright, round top or gothic arch, not rounded edges only).

• Dimensions (WHD)
• 430 x 590 x 285 mm / 16.9 x 23.2 x 11.2 inch

• Notes
• Lautsprecher Type 2165 mit 10 Ohm

• Net weight (2.2 lb = 1 kg)
• 20.3 kg / 44 lb 11.4 oz (44.714 lb)

• Price in first year of sale
• 3,500.00 FF

• Mentioned in
• Catalogue Radio St.- Lazare Paris 1934 p. 20

• Literature/Schematics (1)
• Schémathèque Toute la Radio (STR)

• Author
• Model page created by Peter Hoddow. See "Data change" for further contributors.
