636A (var2)

636A ; Philips - Schweiz (ID = 6202) Radio

636A ; Philips - Schweiz (ID = 6203) Radio

636A ; Philips - Schweiz (ID = 6204) Radio

636A ; Philips - Schweiz (ID = 6205) Radio

636A ; Philips - Schweiz (ID = 6206) Radio

636A ; Philips - Schweiz (ID = 6207) Radio

636A ; Philips - Schweiz (ID = 6208) Radio

636A ; Philips - Schweiz (ID = 6209) Radio

636A ; Philips - Schweiz (ID = 6210) Radio

636A ; Philips - Schweiz (ID = 6211) Radio
636A ; Philips - Schweiz (ID = 1586097) Radio 636A ; Philips - Schweiz (ID = 289595) Radio
636A ; Philips - Schweiz (ID = 289596) Radio 636A ; Philips - Schweiz (ID = 1586098) Radio
636A ; Philips - Schweiz (ID = 1586099) Radio 636A ; Philips - Schweiz (ID = 1586100) Radio
636A ; Philips - Schweiz (ID = 1586101) Radio 636A ; Philips - Schweiz (ID = 1586102) Radio
636A ; Philips - Schweiz (ID = 1586103) Radio 636A ; Philips - Schweiz (ID = 1705939) Radio
Use red slider bar for more.
636A ; Philips - Schweiz (ID = 1586097) Radio
Philips - Schweiz: 636A [Radio] ID = 1586097 922x692
Select picture or schematic to display from thumbnails on the right and click for download.
For model 636A (var2), Philips - Schweiz

Country:  Switzerland
Manufacturer / Brand:  Philips - Schweiz
Year: 1933/1934 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 8: E452T E444 E499 E499 E455 E455 E463 506
Main principle TRF without regeneration
Tuned circuits 4 AM circuit(s)
Wave bands Broadcast (MW) and Long Wave.
Details
Power type and voltage Alternating Current supply (AC) / 100-250 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 21 cm = 8.3 inch
Power out
from Radiomuseum.org Model: 636A - Philips - Schweiz
Material Wooden case

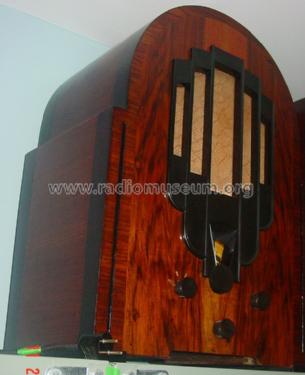

Shape Table-Cathedral-Type (upright, round top or gothic arch, not rounded edges only).
Dimensions (WHD) 430 x 590 x 290 mm / 16.9 x 23.2 x 11.4 inch
Notes T=and.Rö!
Net weight (2.2 lb = 1 kg) 20.3 kg / 44 lb 11.4 oz (44.714 lb)
Price in first year of sale 535.00 SFr
Collectors' prices
External source of data E. Erb 3-907007-36-0
Source of data Radiokatalog Band 2, Ernst Erb

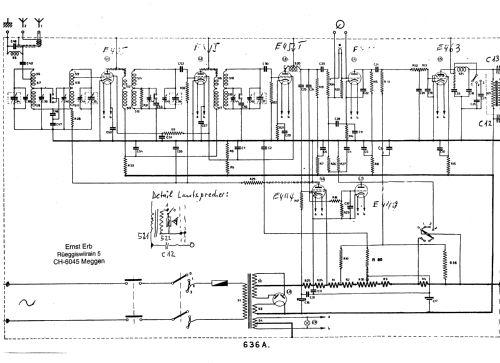

Circuit diagram reference Thali-Schemasammlung und Tungsram-Röhrenbestückung.
Mentioned in Les Radio PHILIPS de collection


All listed radios etc. from Philips - Schweiz
Here you find 288 models, 204 with images and 206 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
