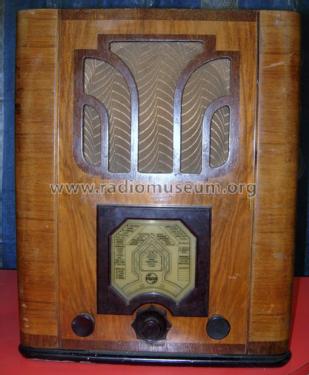

Super-Inductance 637A; Philips France; (ID = 1811455) Radio
Philips France;: Super-Inductance 637A [Radio] ID = 1811455 933x1129
Select picture or schematic to display from thumbnails on the right and click for download.
For model Super-Inductance 637A, Philips France; Paris

Country:  France
Manufacturer / Brand:  Philips France; Paris
Year: 1935/1936 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: AF2 AF2 AB1 E446 E463 506
Main principle TRF (Tuned-Radio-Frequency but use of regeneration unknown); 2 AF stage(s)
Tuned circuits 4 AM circuit(s)
Wave bands Broadcast (MW) and Long Wave.
Details
Power type and voltage Alternating Current supply (AC) / 110-240 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: Super-Inductance 637A - Philips France; Paris
Material Wooden case
Shape Tablemodel, high profile (upright - NOT Cathedral nor decorative).
Dimensions (WHD) 380 x 470 x 230 mm / 15 x 18.5 x 9.1 inch
Notes

Filtre anti-parasites. Anti-fading. Contrôle de tonalité progressif. Cadran "micro-index" interchangéable. Fonctionne sans antenne en utilisant un des conducteurs de réseau.

Net weight (2.2 lb = 1 kg) 13.2 kg / 29 lb 1.2 oz (29.075 lb)
Price in first year of sale 1'750.00 FRF
Mentioned in -- Original prospect or advert (Gamme 1936)
Literature/Schematics (1) -- Original prospect or advert (L'Est Républicain, 22.11.1935)
Literature/Schematics (2) Schémathèque Toute la Radio (STR) (No. 134)
Literature/Schematics (3) -- Original-techn. papers.

Model page created by Didier Tholomier. See "Data change" for further contributors.
