• Country
• Switzerland

• Manufacturer / Brand
• Philips - Schweiz

• Year
• 1934/1935

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 13232

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• AF2 AF2 AB1 E446 E463 506

• Main principle
• TRF without regeneration

• Tuned circuits
• 4 AM circuit(s)

• Wave bands
• Broadcast (MW) and Long Wave.

• Power type and voltage
• Alternating Current supply (AC) / 110-240 Volt

• Loudspeaker
• Permanent or electro-dynamic (moving coil), system not known yet. / Ø 21 cm = 8.3 inch

• Material
• Wooden case

• from Radiomuseum.org

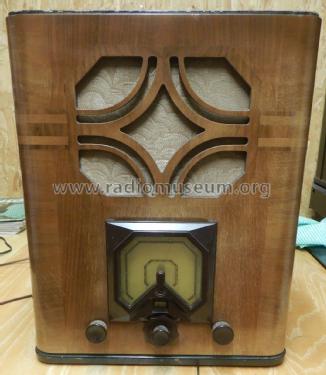

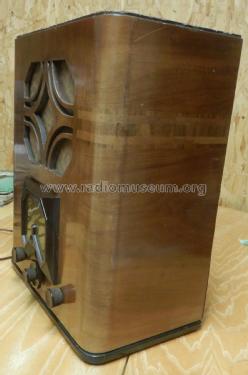

• Model: Super inductance 638A - Philips - Schweiz

• Shape
• Tablemodel, high profile (upright - NOT Cathedral nor decorative).

• Dimensions (WHD)
• 380 x 470 x 220 mm / 15 x 18.5 x 8.7 inch

• Notes
• Lautsprecher Type 4283 mit 10 Ohm

• Net weight (2.2 lb = 1 kg)
• 14.1 kg / 31 lb 0.9 oz (31.057 lb)

• External source of data
• E. Erb 3-907007-36-0

• Source of data
• Radiokatalog Band 2, Ernst Erb

• Circuit diagram reference
• Thali-Schemasammlung und Tungsram-Röhrenbestückung.

• Mentioned in
• Les Radio PHILIPS de collection

• Literature/Schematics (1)
• -- Original-techn. papers.

• Other Models

• Here you find 288 models, 210 with images and 211 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
  All listed radios etc. from Philips - Schweiz
