• Country
• Germany

• Manufacturer / Brand
• Philips Radios - Deutschland

• Year
• 1954 ?

• Category
• Audio Amplifier or -mixer

• Radiomuseum.org ID
• 98392

• • Brand: Deutsche Philips-Ges.

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 8

• Valves / Tubes
• EF40 EF40 ECC40 ECC40 EL81 EL81 EL81 EL81

• Number of Transistors

• Semiconductors
• OA55 BY100 BY100 BY100 BY100

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Power type and voltage
• Alternating Current supply (AC) / 110; 125; 145; 200; 220; 245 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Power out
• 40 W (undistorted)

• Material
• Metal case

• from Radiomuseum.org

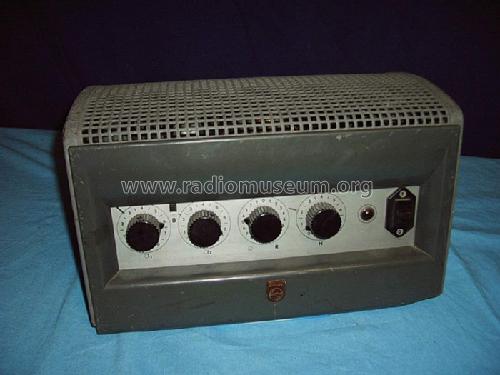

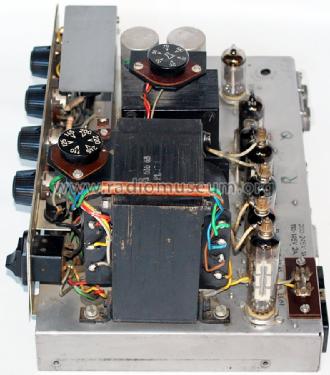

• Model: EL6411 /00 - Philips Radios - Deutschland

• Shape
• Tablemodel, with any shape - general.

• Notes

• Eingangsspannungen für Vollaussteuerung:	Mikrophon 5,5 mV
  	Tonabnehmer 33 mV
  	Rundfunk 73 mV

  Frequenzbereich 30 Hz bis 15 kHz -1,7 dB
  Ausgangsleistung 40 W, Klirrfaktor 2% bei 1000 Hz
  Ausgang umschaltbar 10, 25, 35, 50, 70 und 100 V

• Literature/Schematics (1)
• Handbuch für Hochfrequenz- und Elektro-Techniker Band IV (1957)

• Literature/Schematics (2)
• -- Schematic

• Author
• Model page created by Wolfgang Lill. See "Data change" for further contributors.
