650A

650A; Philips; Budapest (ID = 226210) Radio
650A; Philips; Budapest (ID = 226371) Radio 650A; Philips; Budapest (ID = 226373) Radio
650A; Philips; Budapest (ID = 226372) Radio 650A; Philips; Budapest (ID = 226374) Radio
650A; Philips; Budapest (ID = 474106) Radio 650A; Philips; Budapest (ID = 1955429) Radio
650A; Philips; Budapest (ID = 1955430) Radio 650A; Philips; Budapest (ID = 1955431) Radio
650A; Philips; Budapest (ID = 1955432) Radio 650A; Philips; Budapest (ID = 1955433) Radio
Use red slider bar for more.
650A; Philips; Budapest (ID = 226371) Radio
Philips; Budapest: 650A [Radio] ID = 226371 826x631
Select picture or schematic to display from thumbnails on the right and click for download.
For model 650A, Philips; Budapest

Country:  Hungary
Manufacturer / Brand:  Philips; Budapest
Year: 1942 Category: Broadcast Receiver - or past WW2 Tuner

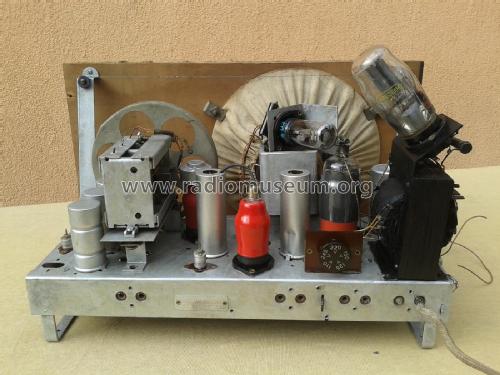

Valves / Tubes 5: ECH4 ECH4 EBL1 AZ4 EM4
Main principle Super-Heterodyne (Super in general); ZF/IF 128 kHz
Tuned circuits 7 AM circuit(s)
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage Alternating Current supply (AC) / 110-240 Volt
Loudspeaker Permanent or electro-dynamic (moving coil), system not known yet.
Power out
from Radiomuseum.org Model: 650A - Philips; Budapest

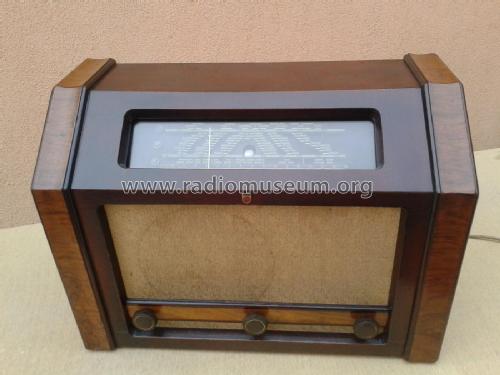

Material Wooden case
Shape Tablemodel, low profile (big size).
Price in first year of sale 380.00 pengö
Mentioned in Rádiókészülékek Kapcsolásai 1936-56

Model page created by Folkert Rothe. See "Data change" for further contributors.
