- Country
- Great Britain (UK)
- Manufacturer / Brand
- Philips Electrical, Lamps, Industrial - Miniwatt; London
- Year
- 1937
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 291613
From the 1937 Philips catalogue
- Number of Tubes
- 6
- Main principle
- Superheterodyne (common); ZF/IF 128 kHz
- Wave bands
- Broadcast, Long Wave and Short Wave.
- Power type and voltage
- AC/DC-set / 100-250 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Material
- Wooden case
- from Radiomuseum.org
- Model: 701AX - Philips Electrical, Lamps,
- Shape
- Console with any shape - in general
- Notes
-

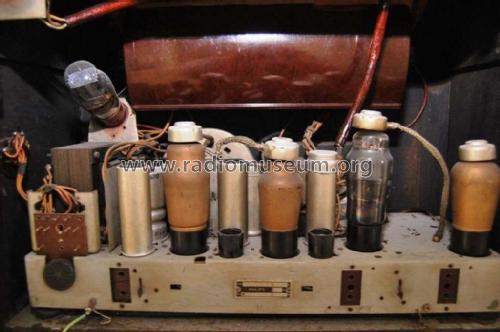

"Magicontrol knob". Two-speed tuning, Magic eye. Tuning scale lifts out of the top of the cabinet Same chassis as in the Philips 701A AC mains model but adapted for DC mains by a Philips 7860C (100-145v DC) or 7861C (200-245v DC) vibrator converter unit. The same chassis as in the Mullard MUS8 model and Philips 785AX table radios.
- Literature/Schematics (1)
- Trader Service Sheet (suppl. of Wireless & El. Trader, etc.) (629)
- Author
- Model page created by Howard Craven. See "Data change" for further contributors.
