Magic 7 770
Philips Australia
- Country
- Australia
- Manufacturer / Brand
- Philips Australia
- Year
- 1959–1965
- Category
- Car Radio, perhaps also + sound player/recorder
- Radiomuseum.org ID
- 220552

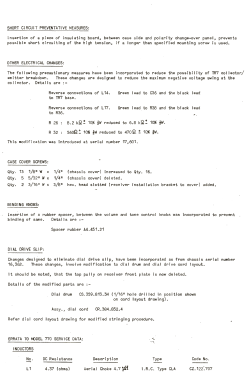

From service manual front cover.
Service manual front page.
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- 7
- Main principle
- Superheterodyne (common); ZF/IF 455 kHz; 3 AF stage(s)
- Tuned circuits
- 7 AM circuit(s)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- Storage Battery for all (e.g. for car radios and amateur radios) / 6; 12 Volt
- Loudspeaker
- - This model requires external speaker(s).
- Material
- Metal case
- from Radiomuseum.org
- Model: Magic 7 770 - Philips Australia
- Shape
- Chassis only or for «building in»
- Notes
-
Philips Model 770 All Transistor Car Radio
A 7 transistor fully powered all transistor car radio for 6 or 12 volt operation - positive or negative to earth. Battery drain on ½ ampere - output 2.5 watts through 7" x 5" high efficiency independently mounted and baffled speaker.
"Long-line" "instant-sight" tuning dial - with all States and separate State zone dials - permeability tuning - fully variable tone control - attractive facia finished in grey and silver. Supplied complete with telescopic aerial, speaker screws and brackets for standard installation.
Special facia plates available for "in dash" mounting on range of popular cars. (MINGAY'S PRICE SERVICE)
- Price in first year of sale
- 51.45 AUS £
- Mentioned in
- Mingay's Price Service (Feb 1960 to Feb 1965.)
- Literature/Schematics (1)
- -- Original-techn. papers. (Philips Car Radio Service Data, December 1959.)
- Literature/Schematics (2)
- J.R. Publications Car Radio Service Handbook (Page P1.)
- Author
- Model page created by Stuart Irwin. See "Data change" for further contributors.
