• Year
  • 1933/1934
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 29562

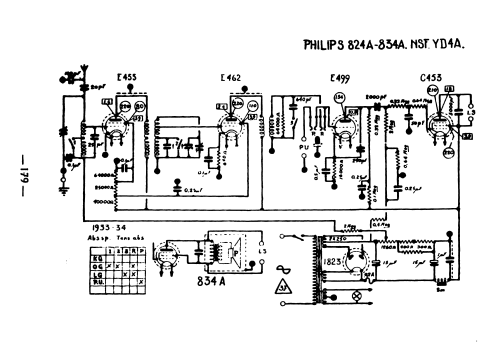

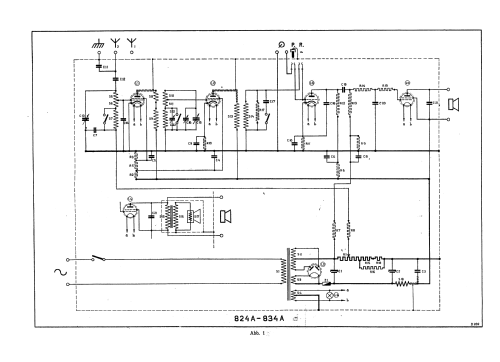

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 5
  • Main principle
  • TRF without regeneration; Anode bend detection
  • Tuned circuits
  • 2 AM circuit(s)
  • Wave bands
  • Broadcast (MW) and Long Wave.
  • Power type and voltage
  • Alternating Current supply (AC) / 103; 111; 118; 127; 135; 143; 155; 186; 210; 225; 240; 253 Volt
  • Loudspeaker
  • - This model requires external speaker(s).
  • Material
  • Bakelite or Plastics (type unknown)
  • from Radiomuseum.org
  • Model: 824A - Philips; Eindhoven tubes
  • Shape
  • Tablemodel, Box - most often with Lid (NOT slant panel).
  • Notes
  • Super-Inductive-Prinzip
  • Price in first year of sale
  • 115.00 hfl

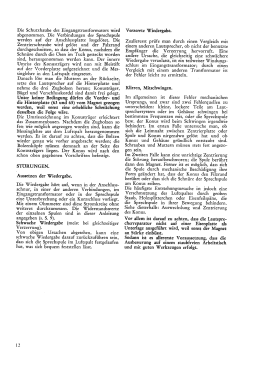

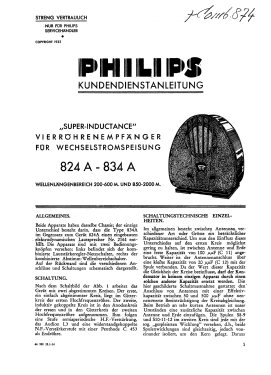

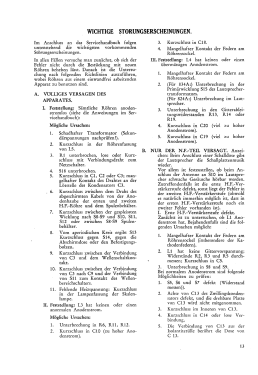

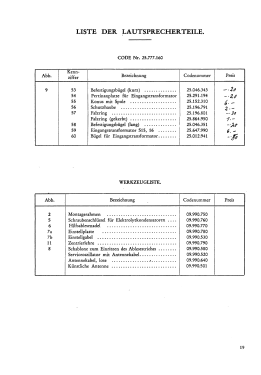

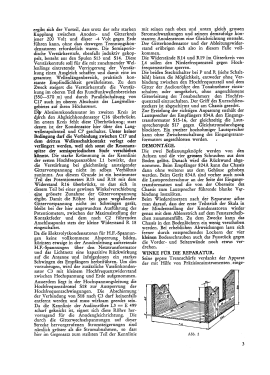

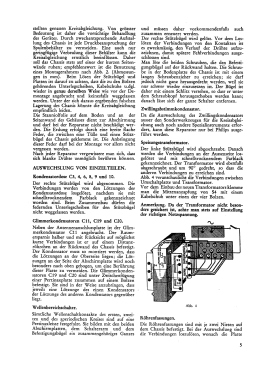

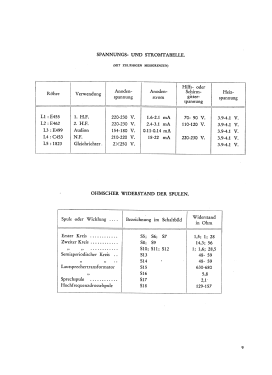

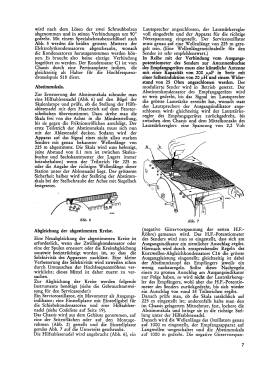

  • Literature/Schematics (1)

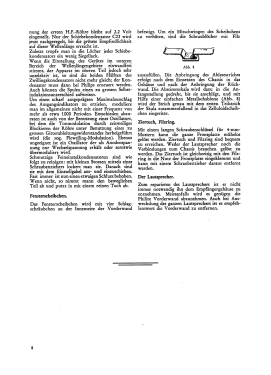

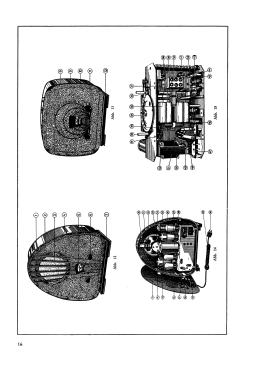

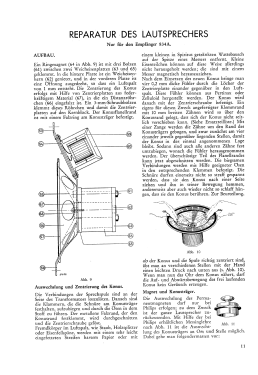

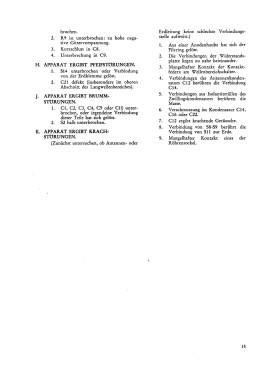

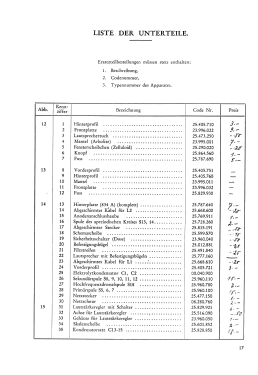

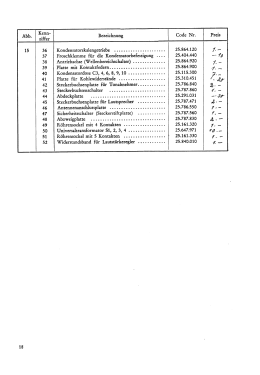

  • -- Original-techn. papers.
  • Author
  • Model page created by Iven Müller. See "Data change" for further contributors.
