Super-Inductance 830A

Super-Inductance 830A; Philips France; (ID = 230193) Radio

Super-Inductance 830A; Philips France; (ID = 230194) Radio
Super-Inductance 830A; Philips France; (ID = 2244566) Radio Super-Inductance 830A; Philips France; (ID = 2244567) Radio
Super-Inductance 830A; Philips France; (ID = 697037) Radio Super-Inductance 830A; Philips France; (ID = 697039) Radio
Super-Inductance 830A; Philips France; (ID = 377629) Radio Super-Inductance 830A; Philips France; (ID = 697033) Radio
Super-Inductance 830A; Philips France; (ID = 697035) Radio Super-Inductance 830A; Philips France; (ID = 697036) Radio
Super-Inductance 830A; Philips France; (ID = 697038) Radio Super-Inductance 830A; Philips France; (ID = 697041) Radio
Use red slider bar for more.
Super-Inductance 830A; Philips France; (ID = 2244566) Radio
Philips France;: Super-Inductance 830A [Radio] ID = 2244566 1400x1519
Select picture or schematic to display from thumbnails on the right and click for download.
For model Super-Inductance 830A, Philips France; Paris

Country:  France
Manufacturer / Brand:  Philips France; Paris
Year: 1931/1932 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: TE52 or E452T TE52 or E452T TE24 or E424 TC43 or C443 506
Main principle TRF without regeneration
Tuned circuits 2 AM circuit(s)
Wave bands Broadcast (MW) and Long Wave.
Details
Power type and voltage Alternating Current supply (AC) / 111; 118; 127; 135; 143; 155; 196; 210; 225; 240; 253 Volt
Loudspeaker Magnetic loudspeaker (reed) of high quality (4 magnet poles). / Ø 28 cm = 11 inch
Power out
from Radiomuseum.org Model: Super-Inductance 830A - Philips France; Paris
Material Special material, described in the notes.
Shape Table-Cathedral-Type (upright, round top or gothic arch, not rounded edges only).
Dimensions (WHD) 410 x 490 x 220 mm / 16.1 x 19.3 x 8.7 inch
Notes

Montage à Super-Inductance. 5 lampes Miniwatt d'origine. Prises HP supplémentaire et pick-up.

Le pied et l'ornement frontal sont en bakelite. Les panneaux frontaux et latéraux sont en arbolite1, leurs supports en métal.

1Arbolite: Matière en papier pressé, traité par un procédé inventé par Philips: couvert par une couche protectrice et peinture comme couche finale.

Net weight (2.2 lb = 1 kg) 11.5 kg / 25 lb 5.3 oz (25.33 lb)
Price in first year of sale 2'600.00 FRF
Collectors' prices

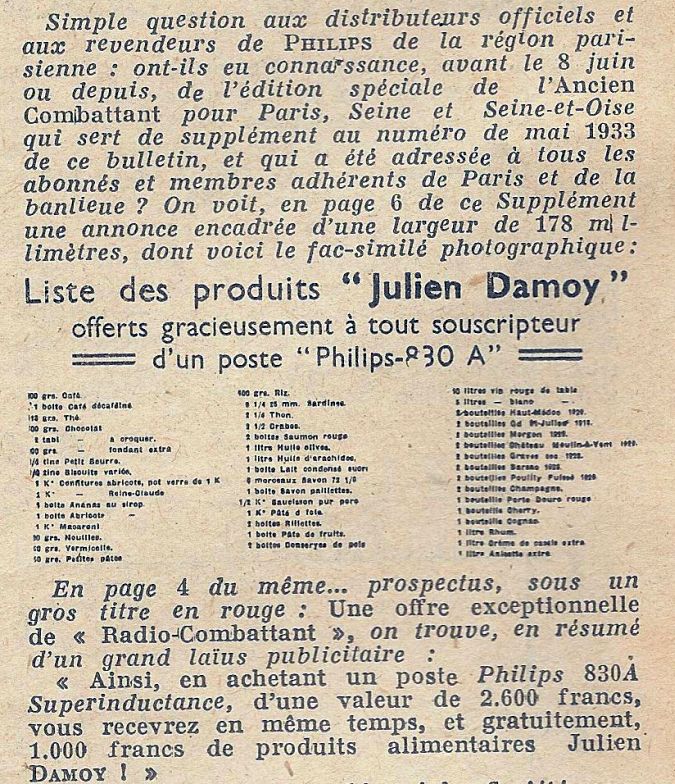

Mentioned in -- Original prospect or advert
Literature/Schematics (1) Schémathèque Toute la Radio (STR)

Model page created by Peter Hoddow. See "Data change" for further contributors.



All listed radios etc. from Philips France; Paris
Here you find 545 models, 482 with images and 297 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.






Forum contributions about this model
Philips France;: Super-Inductance 830A
Threads: 3 | Posts: 5
Hits: 1163     Replies: 0
philips: 830A; zusätzliche Informationen
Manfred Rathgeb
09.Jun.15
  1

Die Wechselstromspeisung ist - wie beim Modell Philips 834A- in 12 Stufen einstellbar von 103 - 253 V, siehe mein Bild der verdeckten Seite des Spannungswählerkreises. Anders allerdings die Vorderseite mit dem größeren Wählbereich.  Die genaue und auch konstruktiv etwas aufwendige Anpassung an das Netz ist eigentlich wenig hilfreich wenn man bedenkt, daß es auch in Frankreich oft Netzschwankungen gab.

Der  Wellenbereich ist nach dem Katalog ARC-Radio1933 2.E. (durchgehend) von 200 bis 2000 Meter, also noch relativ groß, Bandbreite 9 kHz. Für den gleichfalls lieferbaren Netzanschluß  mit 25 periodes wird kein Aufpreis verlangt.




Hits: 2805     Replies: 2
philips: 830A ;
Jose Duarte Costa
30.Nov.11
  1

Dear members

I need a scan of the dial

Thank you very much

José Duarte

Christian ADAM
05.Dec.11
  2

Dear José,

I have it because I had to made a new one for my own use,

I send it to you by email,

Best regards from France,

Christian





Jose Duarte Costa
05.Dec.11
  3

 Dear Christian

 I just received your email and I would like to thank you for sending the dial.

 Kindly regards

 José Duarte (Portugal)


Hits: 3250     Replies: 0
philips: TANDEM PHILIPS 830
Salvador Saura-Lopez
12.Dec.08
  1

NECESITO EL CONDENSADOR VARIABLE DE SINTONIA (TANDEM) DE ESTA RADIO O EQUIVALENTE. Ofertas en correo electronico.

I Need the C.V. Tandem from this model.

Greettings.


Philips France;: Super-Inductance 830A
End of forum contributions about this model
