832A

832A; Philips France; (ID = 1024158) Radio 832A; Philips France; (ID = 1024159) Radio
832A; Philips France; (ID = 1024160) Radio 832A; Philips France; (ID = 1024162) Radio
832A; Philips France; (ID = 1024163) Radio
Use red slider bar for more.

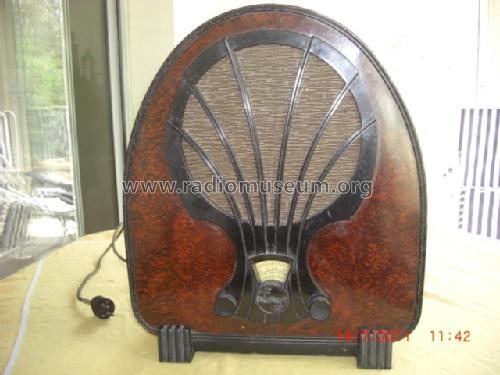

832A; Philips France; (ID = 1024158) Radio
Philips France;: 832A [Radio] ID = 1024158 640x480
Select picture or schematic to display from thumbnails on the right and click for download.
For model 832A, Philips France; Paris

Country:  France
Manufacturer / Brand:  Philips France; Paris
Year: 1932/1933 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: TE52 or E452T TE52 or E452T TE24 or E424 TC43 or C443 506
Main principle TRF without regeneration
Wave bands Broadcast (MW) and Long Wave.
Details
Power type and voltage Alternating Current supply (AC) / 110-240 Volt
Loudspeaker Permanent or electro-dynamic (moving coil), system not known yet.
Power out
from Radiomuseum.org Model: 832A - Philips France; Paris
Material Bakelite case
Shape Table-Cathedral-Type (upright, round top or gothic arch, not rounded edges only).

Model page created by Jean-Louis HEYD. See "Data change" for further contributors.



All listed radios etc. from Philips France; Paris
Here you find 582 models, 519 with images and 321 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
