870A

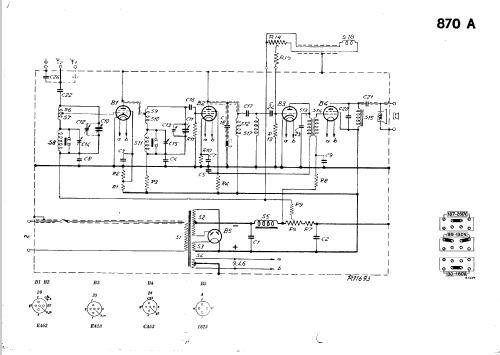

870A; Philips; Eindhoven (ID = 35641) Radio

870A; Philips; Eindhoven (ID = 35642) Radio
870A; Philips; Eindhoven (ID = 235227) Radio 870A; Philips; Eindhoven (ID = 485507) Radio
870A; Philips; Eindhoven (ID = 485508) Radio 870A; Philips; Eindhoven (ID = 485509) Radio
870A; Philips; Eindhoven (ID = 485510) Radio
Use red slider bar for more.

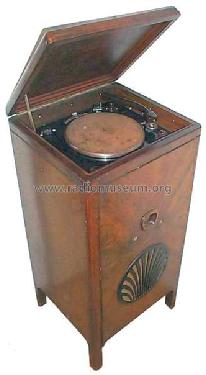

870A; Philips; Eindhoven (ID = 235227) Radio
Philips; Eindhoven: 870A [Radio] ID = 235227 332x604
Select picture or schematic to display from thumbnails on the right and click for download.
For model 870A, Philips; Eindhoven (tubes international!); Miniwatt

Country:  Netherlands
Manufacturer / Brand:  Philips; Eindhoven (tubes international!); Miniwatt
Year: 1932/1933 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: E462 E462 E428 C453 1823
Main principle TRF without regeneration
Tuned circuits 2 AM circuit(s)
Wave bands Broadcast (MW) and Long Wave.
Details Record Player (not changer)
Power type and voltage Alternating Current supply (AC) / 103; 111; 118; 127; 135; 143; 155; 186; 210; 225; 240; 253 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 21 cm = 8.3 inch
Power out
from Radiomuseum.org Model: 870A - Philips; Eindhoven tubes
Material Wooden case
Shape Console with any shape - in general
Notes

Same chassis as model 830A.

Loudspeaker type 2157.

Super-Inductive principle.

Grid detection on E428.

The mains voltage for the record player must be selected separately from 3 ranges: 99-130V, 130-160V or 187-260V.

Price in first year of sale 375.00 hfl
Source of data Overzicht v.de toe te p PHILIPS
Mentioned in Technisch- Commercieel - Radio Vademecum Staleman
Literature/Schematics (1) -- Original-techn. papers.

Model page created by Iven Müller. See "Data change" for further contributors.
