870A

870A; Philips - Schweiz (ID = 19305) Radio

870A; Philips - Schweiz (ID = 19306) Radio
870A; Philips - Schweiz (ID = 20030) Radio 870A; Philips - Schweiz (ID = 20550) Radio
870A; Philips - Schweiz (ID = 20551) Radio 870A; Philips - Schweiz (ID = 988739) Radio
Use red slider bar for more.
870A; Philips - Schweiz (ID = 20030) Radio
Philips - Schweiz: 870A [Radio] ID = 20030 357x700
Select picture or schematic to display from thumbnails on the right and click for download.
For model 870A, Philips - Schweiz

Country:  Switzerland
Manufacturer / Brand:  Philips - Schweiz
Year: 1931–1933 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: E452T E452T E424N C443 506
Main principle TRF without regeneration
Tuned circuits 2 AM circuit(s)
Wave bands Broadcast (MW) and Long Wave.
Details Record Player (not changer)
Power type and voltage Alternating Current supply (AC) / 110-240 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 21 cm = 8.3 inch
Power out
from Radiomuseum.org Model: 870A - Philips - Schweiz
Material Wooden case
Shape Console with any shape - in general
Dimensions (WHD) 500 x 1040 x 480 mm / 19.7 x 40.9 x 18.9 inch
Notes

Chassis wie 830A.

Lautsprecher Typ 2157.

Super-Induktion-Prinzip.

Gitter-Detektor in E424N.


Same chassis as model 830A.

Loudspeaker type 2157.

Super-Inductive principle.

Grid detection on E424N.

The mains voltage for the record player must be selected separately from 3 ranges: 99-130V, 130-160V or 187-260V.

Net weight (2.2 lb = 1 kg) 34.8 kg / 76 lb 10.4 oz (76.652 lb)
Price in first year of sale 3,200.00 FF
External source of data E. Erb 3-907007-36-0
Source of data Radiokatalog Band 2, Ernst Erb
Mentioned in Les Radio PHILIPS de collection

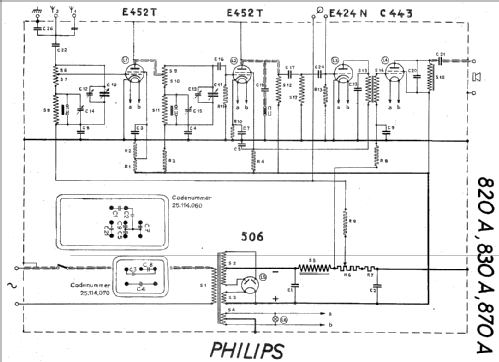

Literature/Schematics (1) -- Schematic
