90AL088/50B

90AL088/50B; Philips, Singapore (ID = 2431131) Radio 90AL088/50B; Philips, Singapore (ID = 2431133) Radio
90AL088/50B; Philips, Singapore (ID = 2431132) Radio 90AL088/50B; Philips, Singapore (ID = 2431130) Radio

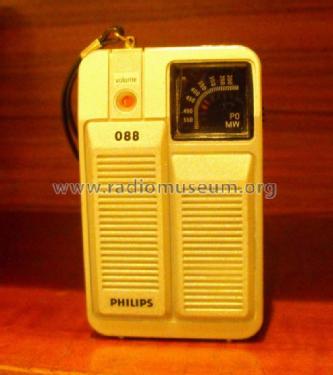

90AL088/50B; Philips, Singapore (ID = 702900) Radio 90AL088/50B; Philips, Singapore (ID = 2440129) Radio
Use red slider bar for more.
90AL088/50B; Philips, Singapore (ID = 2431131) Radio
Philips, Singapore: 90AL088/50B [Radio] ID = 2431131 1000x1392
Select picture or schematic to display from thumbnails on the right and click for download.
For model 90AL088/50B, Philips, Singapore

Country:  Singapore
Manufacturer / Brand:  Philips, Singapore
Year: 1977 ? Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 6:
Main principle Superheterodyne (common)
Tuned circuits 5 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage Dry Batteries / 2 x 1,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out 0.2 W (unknown quality)
from Radiomuseum.org Model: 90AL088/50B - Philips, Singapore
Material Plastics (no bakelite or catalin)
Shape Very small Portable or Pocket-Set (Handheld) < 8 inch.
Dimensions (WHD) 68 x 110 x 36 mm / 2.7 x 4.3 x 1.4 inch
Notes Philips 90AL088/50B;

Model page created by Giuseppe Duello. See "Data change" for further contributors.
