• Country
• Netherlands

• Manufacturer / Brand
• Philips; Eindhoven (tubes international!); Miniwatt

• Year
• 1977

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 214939

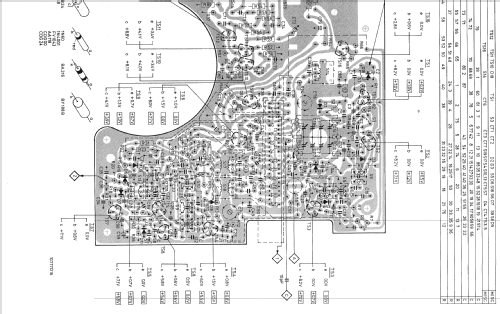

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 17

• Semiconductors
• BF494 BC548 BC328 BC368 BC369 AC128

• Main principle
• Superheterodyne (common); ZF/IF 470/10700 kHz

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Power type and voltage
• Line / Batteries (any type) / 110; 220 / 6 x 1,5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 10 cm = 3.9 inch

• Power out
• 2 W (unknown quality)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: 90AL860 /15 - Philips; Eindhoven tubes

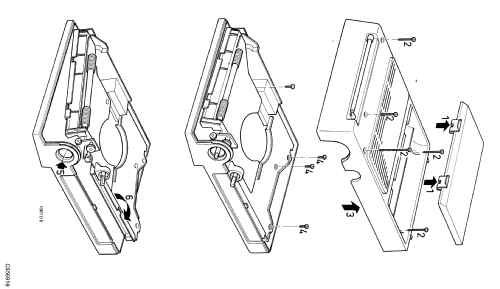

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 225 x 270 x 90 mm / 8.9 x 10.6 x 3.5 inch

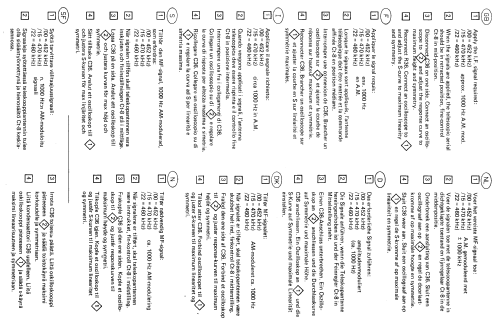

• Notes
• Wave range:
  LW: 150 - 255 kHz.
  MW: 520 - 1605 kHz.
  SW: 5,95 - 15.45 MHz.
  FM: 87,5 - 108 MHz.
  One semiconductor per type listed.

• Net weight (2.2 lb = 1 kg)
• 2.1 kg / 4 lb 10 oz (4.626 lb)

• Source of data
• -- Original-techn. papers.

• Author
• Model page created by Eduard Abfalterer. See "Data change" for further contributors.
