• Country
• Netherlands

• Manufacturer / Brand
• Philips; Eindhoven (tubes international!); Miniwatt

• Year
• 1982 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 213047

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 19

• Semiconductors
• BF494 BF495 BC558 BC548 BC338 BC558 AC128 TBA810

• Main principle
• Superheterodyne (common); ZF/IF 468/10700 kHz

• Wave bands
• Broadcast, (BC) Long Wave (LW), 2 x SW and FM or UHF.

• Power type and voltage
• Line / Batteries (any type) / 110; 220 / 6 x 1,5 Volt

• Loudspeaker
• 2 Loudspeakers

• Power out
• 2 W (unknown quality)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: 90AL970 /51 - Philips; Eindhoven tubes

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 350 x 250 x 115 mm / 13.8 x 9.8 x 4.5 inch

• Notes
• Wave range:
  LW: 150 - 255 kHz.
  MW: 520 - 1605 kHz.
  SW1: 2,3 - 7,3 MHz.
  SW2: 9,5 - 21,8 MHz.
  FM: 87,5 - 108 MHz.
  One semiconductor per type listed.

• Net weight (2.2 lb = 1 kg)
• 3.3 kg / 7 lb 4.3 oz (7.269 lb)

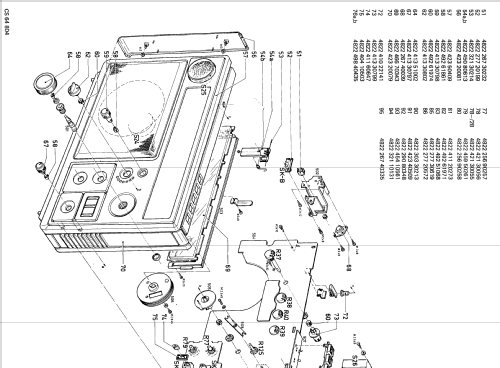

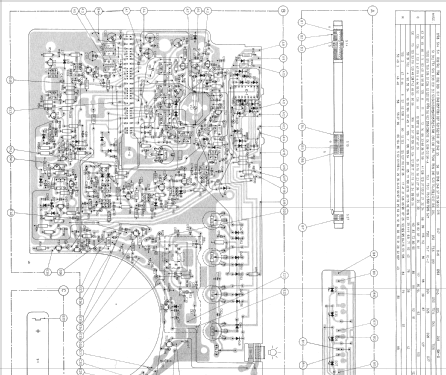

• Literature/Schematics (1)
• -- Original-techn. papers.

• Author
• Model page created by Eduard Abfalterer. See "Data change" for further contributors.
