90RL050 /72

90RL050 /72; Philips Hong Kong (ID = 1910375) Radio 90RL050 /72; Philips Hong Kong (ID = 1910376) Radio
90RL050 /72; Philips Hong Kong (ID = 1910377) Radio 90RL050 /72; Philips Hong Kong (ID = 1910378) Radio
90RL050 /72; Philips Hong Kong (ID = 1910379) Radio
Use red slider bar for more.

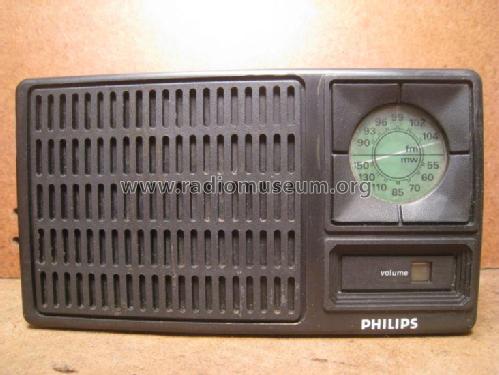

90RL050 /72; Philips Hong Kong (ID = 1910375) Radio
Philips Hong Kong: 90RL050 /72 [Radio] ID = 1910375 733x550
Select picture or schematic to display from thumbnails on the right and click for download.
For model 90RL050 /72, Philips Hong Kong

Country:  Hong Kong
Manufacturer / Brand:  Philips Hong Kong
Year: 1977 ? Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 11:
Main principle Superheterodyne (common); ZF/IF 460/10700 kHz
Wave bands Broadcast (BC) and FM or UHF.
Details
Power type and voltage Dry Batteries / 4x 1,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5.5 cm = 2.2 inch
Power out 0.3 W (undistorted)
from Radiomuseum.org Model: 90RL050 /72 - Philips Hong Kong
Material Plastics (no bakelite or catalin)
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 138 x 76 x 39 mm / 5.4 x 3 x 1.5 inch
Notes

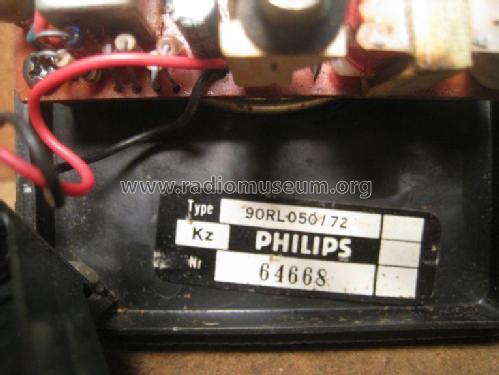

Origin letters Kz found on example, indicate that this set was made for Philips Hong Kong.

Net weight (2.2 lb = 1 kg) 0.3 kg / 0 lb 10.6 oz (0.661 lb)

Model page created by Edoardo Sigismondo. See "Data change" for further contributors.
