• Country
• Hong Kong

• Manufacturer / Brand
• Philips Hong Kong

• Year
• 1975/1976

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 223724

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 10

• Semiconductors
• ED1502 ED1502 ED1502 ED1502 ED1502 ED1402 ED1402 ED1402 ED1702 ED1802 CDG00 1N60 CDG00 1N60 1N60 CDG24 CDG24

• Main principle
• Superheterodyne (common)

• Tuned circuits
• 5 AM circuit(s)     8 FM circuit(s)

• Wave bands
• Broadcast (BC) and FM or UHF.

• Power type and voltage
• Dry Batteries / 4 x 1,5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

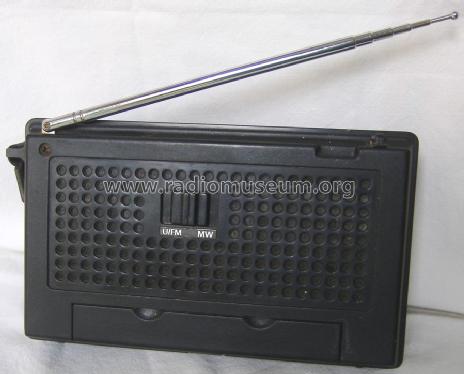

• Model: 90RL150 /22R - Philips Hong Kong

• Shape
• Very small Portable or Pocket-Set (Handheld) < 8 inch.

• Dimensions (WHD)
• 177 x 105 x 50 mm / 7 x 4.1 x 2 inch

• Notes

• Gewicht ohne Batterien

• Net weight (2.2 lb = 1 kg)
• 0.575 kg / 1 lb 4.3 oz (1.267 lb)

• Literature/Schematics (1)
• -- Original-techn. papers.

• Author
• Model page created by Jörg Holtzapfel. See "Data change" for further contributors.
