90RL230 /00 /28
Philips; Eindhoven (tubes international!); Miniwatt
- Country
- Netherlands
- Manufacturer / Brand
- Philips; Eindhoven (tubes international!); Miniwatt
- Year
- 1973 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 172410
- Number of Transistors
- 7
- Main principle
- Superheterodyne (common); ZF/IF 452 kHz; 3 AF stage(s)
- Wave bands
- Broadcast (MW) and Long Wave.
- Power type and voltage
- Dry Batteries / 4 x 1,5 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 8 cm = 3.1 inch
- Power out
- 0.6 W (unknown quality)
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org

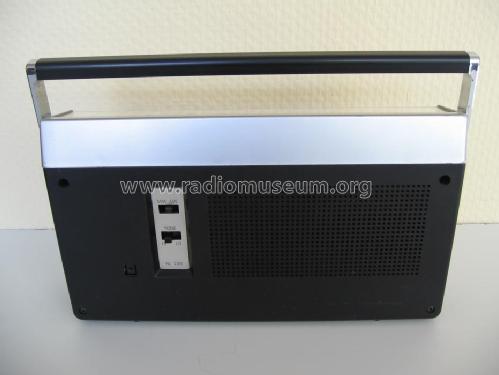

- Model: 90RL230 /00 /28 - Philips; Eindhoven tubes
- Shape
- Portable set > 8 inch (also usable without mains)
- Dimensions (WHD)
- 295 x 160 x 65 mm / 11.6 x 6.3 x 2.6 inch
- Notes
-
90RL230 is a low range Philips radio "made in Singapore".
Loudspeaker impedance: 4 ohm.
Version /15: IF=468 kHz, version /22: IF=460 kHz.
- Net weight (2.2 lb = 1 kg)
- 1.2 kg / 2 lb 10.3 oz (2.643 lb)
- Source of data
- -- Original-techn. papers.
- Author
- Model page created by Serge Laffont. See "Data change" for further contributors.
