• Country
• Germany

• Manufacturer / Brand
• Philips Radios - Deutschland

• Year
• 1970 ??

• Category
• Sound/Video Recorder and/or Player

• Radiomuseum.org ID
• 109170

• • Brand: Deutsche Philips-Ges.

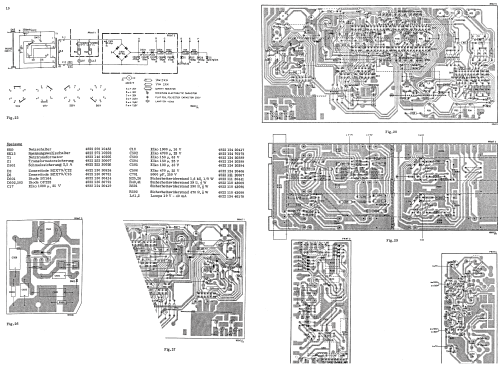

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Details
• Tape Recorder

• Power type and voltage
• Alternating Current supply (AC) / 110; 127; 220; 240 Volt

• Loudspeaker
• 2 Loudspeakers

• Power out
• 5 W (unknown quality)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: 9197A/22 - Philips Radios - Deutschland

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 515 x 380 x 200 mm / 20.3 x 15 x 7.9 inch

• Notes
• 3 Bandgeschwindigkeiten 4,75/9,5/19cm/s; 4-Spurgerät.

• Net weight (2.2 lb = 1 kg)
• 10 kg / 22 lb 0.4 oz (22.026 lb)

• Price in first year of sale
• 763.00 DM

• Source of data
• -- Original-techn. papers.

• Author
• Model page created by Wolfgang Feige. See "Data change" for further contributors.
