940A 1 Antennenschalter

• Country
• Netherlands

• Manufacturer / Brand
• Philips; Eindhoven (tubes international!); Miniwatt

• Year
• 1935

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 310990

• Picture
• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 3

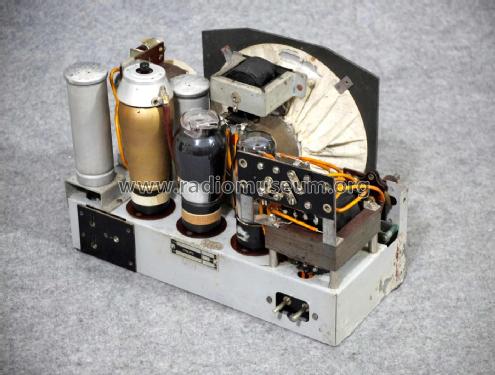

• Valves / Tubes
• E446 E443H 506

• Main principle
• TRF without regeneration; 1 AF stage(s)

• Tuned circuits
• 1 AM circuit(s)

• Wave bands
• Broadcast (MW) and Long Wave.

• Power type and voltage
• Alternating Current supply (AC) / 103; 111; 118; 127; 135; 143; 155; 196; 210; 225; 240; 253 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 17 cm = 6.7 inch

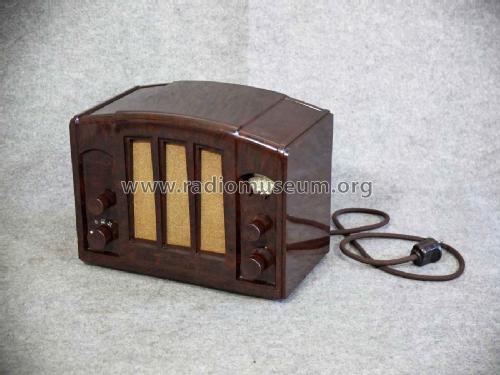

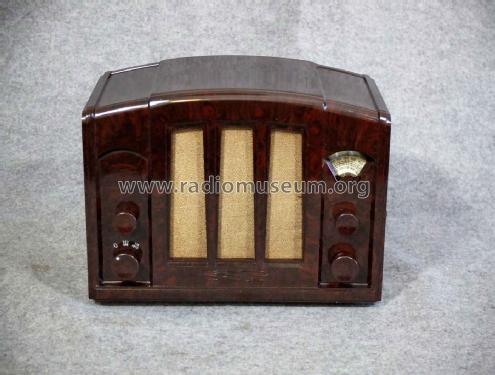

• Material
• Bakelite case

• from Radiomuseum.org
• Model: 940A [1 Antennenschalter] - Philips; Eindhoven tubes

• Shape
• Tablemodel without push buttons, Mantel/Midget/Compact up to 14

• Dimensions (WHD)
• 315 x 245 x 175 mm / 12.4 x 9.6 x 6.9 inch

• Notes

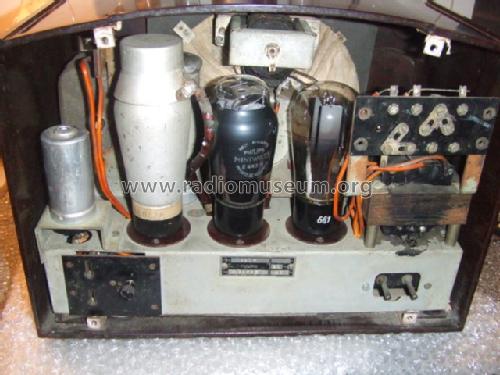

• This radio was made in The Netherlands for the Swedish market.
  See the Semko sign on the rear wall.

  Siehe auch Philips 940A mit 3 Antennenschaltern.

• Net weight (2.2 lb = 1 kg)
• 7 kg / 15 lb 6.7 oz (15.419 lb)

• Literature/Schematics (1)
• -- Original-techn. papers.

• Author
• Model page created by Wolfgang Bauer. See "Data change" for further contributors.
