Norseman II 9416 Ch= 941
Philips Australia
- Country
- Australia
- Manufacturer / Brand
- Philips Australia
- Year
- 1964
- Category
- Television Receiver (TV) or Monitor
- Radiomuseum.org ID
- 216216

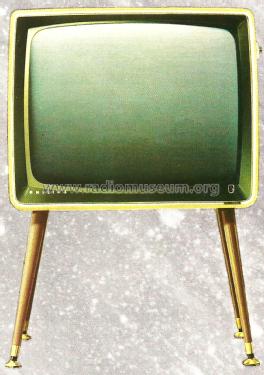

Scan aus Hersteller-Prospekt

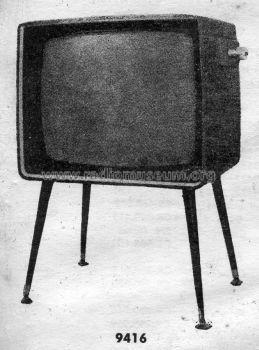

Philips model 9416 from service manual.
- Number of Tubes
- 17
- Valves / Tubes
- 6ES8 6HG8 6EH7 6EJ7 6EJ7 6DX8 6BL8 6BL8 6GW8 6CS6 12AU7A 6GV8 6BL8 6CM5 6AL3 1S2 AW59-91
- Number of Transistors
- Main principle
- Superhet with RF-stage; ZF/IF 36500/31000 kHz; 2 AF stage(s)
- Wave bands
- Wave Bands given in the notes.
- Power type and voltage
- Alternating Current supply (AC) / 200; 220; 240; 255 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
- Material
- Wooden case
- from Radiomuseum.org
- Model: Norseman II 9416 Ch= 941 - Philips Australia
- Shape
- Console, Highboy (legs > 50 %).
- Dimensions (WHD)
- 22 x 18.065 x 14.75 inch / 559 x 459 x 375 mm
- Notes
-
59 cm B&W television set tunes the 13 standard Australian VHF channels.
Height does not include legs. Legs are 14 5/16" in length.
Cabinet finishes in Maple & Walnut.
- Price in first year of sale
- 156.45 AUS £
- Literature/Schematics (1)
- - - Manufacturers Literature (Philips Service Notes, March 1964.)
- Literature/Schematics (2)
- J.R. Publications Television Service Handbook (L.J. Series Vol. 2, 1967, Page P20a.)
- Author
- Model page created by Stuart Irwin. See "Data change" for further contributors.
