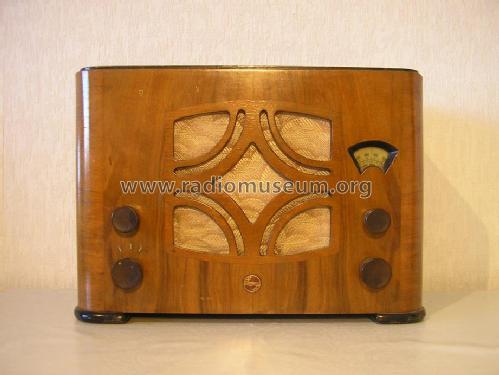

For model 944A-19, Philips akc. spol., Praha-Hloubetin

Country:  Czechoslovakia
Manufacturer / Brand:  Philips akc. spol., Praha-Hloubetin
Year: 1934/1935 Category: Broadcast Receiver - or past WW2 Tuner

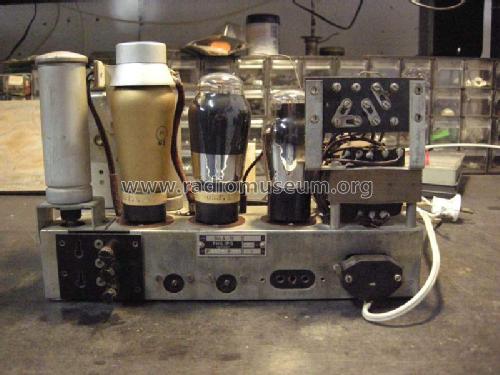

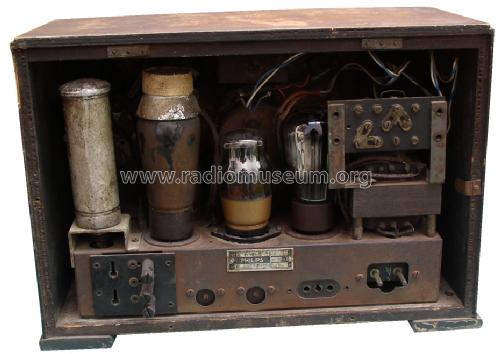

Valves / Tubes 3: E446 E443H 506
Main principle TRF with regeneration; 1 AF stage(s)
Tuned circuits 1 AM circuit(s)

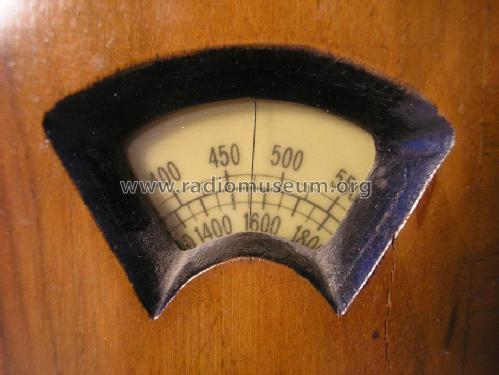

Wave bands Broadcast (MW) and Long Wave.
Details
Power type and voltage Alternating Current supply (AC) / 103; 111; 118; 127; 135; 143; 155; 196; 210; 225; 240; 253 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: 944A-19 - Philips akc. spol., Praha-
Material Wooden case
Shape Tablemodel, Mantel/Midget/Compact up to 14" width, but not a Portable (See power data. Sometimes with handle but for mains only).
Dimensions (WHD) 347 x 246 x 170 mm / 13.7 x 9.7 x 6.7 inch

Model page created by Wolfgang Bauer. See "Data change" for further contributors.
