Discoverer II 9513 Ch= 951

Country:  Australia
Manufacturer / Brand:  Philips Australia
Year: 1965 Category: Television Receiver (TV) or Monitor
Valves / Tubes 16: 6ES8 6HG8 6EH7 6EJ7 6EJ7 6DX8 6GW8 6CS6 6BL8 12AU7A 6GV8 6BL8 6CM5 6AL3 1S2 A59-11W
Semiconductors (the count is only for transistors) 2: AF117N AF117N OA90 OA91 OA91 OA91 AA119 AA119 OA91 OA91 OA91 OA210 or. 1N1763 OA210 or. 1N1763
Main principle Superhet with RF-stage; ZF/IF 36500/31000 kHz; 2 AF stage(s)
Wave bands VHF incl. FM and/or UHF (see notes for details)
Details
Power type and voltage Alternating Current supply (AC) / 220; 240; 255 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: Discoverer II 9513 Ch= 951 - Philips Australia
Material Wooden case
Shape Console with any shape - in general
Dimensions (WHD) 29.125 x 31.75 x 11.75 inch / 740 x 806 x 298 mm
Notes

This 59 cm television set tuned the 13 standard Australian VHF TV channels.

Cabinet finishes available  in Walnut, Maple, Rosewood & Teak.

Price in first year of sale 204.75 AUS £
Literature/Schematics (1) - - Manufacturers Literature (Philips Service Notes.)

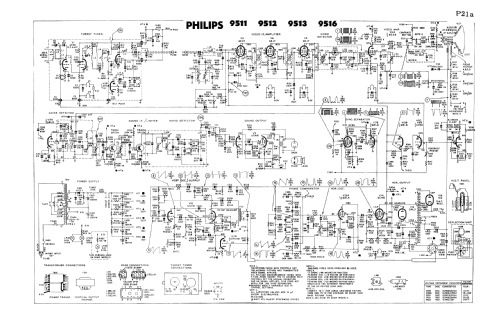

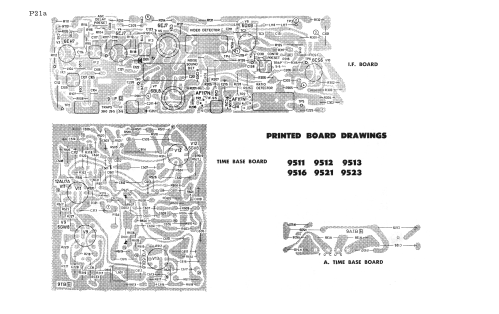

Literature/Schematics (2) J.R. Publications Television Service Handbook (Group 6, 1965, Page P21a)

Model page created by Stuart Irwin. See "Data change" for further contributors.
