A6X38AT

A6X38AT; Philips; Eindhoven (ID = 48498) Radio

A6X38AT; Philips; Eindhoven (ID = 48499) Radio

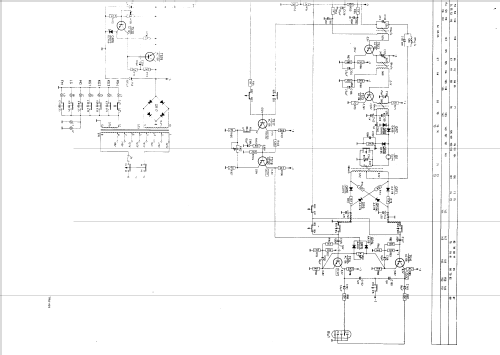

A6X38AT; Philips; Eindhoven (ID = 48500) Radio
A6X38AT; Philips; Eindhoven (ID = 485516) Radio A6X38AT; Philips; Eindhoven (ID = 485519) Radio

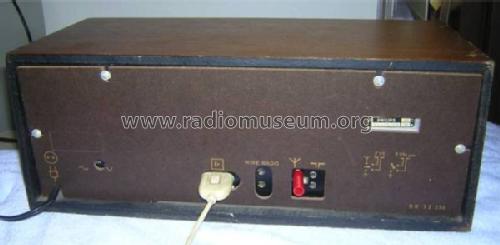

A6X38AT; Philips; Eindhoven (ID = 485518) Radio A6X38AT; Philips; Eindhoven (ID = 485517) Radio
A6X38AT; Philips; Eindhoven (ID = 485520) Radio A6X38AT; Philips; Eindhoven (ID = 485521) Radio
A6X38AT; Philips; Eindhoven (ID = 1049944) Radio A6X38AT; Philips; Eindhoven (ID = 1049945) Radio
A6X38AT; Philips; Eindhoven (ID = 1049946) Radio A6X38AT; Philips; Eindhoven (ID = 1049947) Radio
Use red slider bar for more.
A6X38AT; Philips; Eindhoven (ID = 485516) Radio
Philips; Eindhoven: A6X38AT [Radio] ID = 485516 600x328
Select picture or schematic to display from thumbnails on the right and click for download.
For model A6X38AT, Philips; Eindhoven (tubes international!); Miniwatt

Country:  Netherlands
Manufacturer / Brand:  Philips; Eindhoven (tubes international!); Miniwatt
Year: 1964 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 22:
Main principle Superheterodyne (common); ZF/IF 452/10700 kHz
Wave bands Broadcast, Long Wave, more than 2 x SW plus FM or UHF.
Details Wired Wireless Receiver (RF!)
Power type and voltage Alternating Current supply (AC) / 90-245 Volt
Loudspeaker - For headphones or amp.
Power out
from Radiomuseum.org Model: A6X38AT - Philips; Eindhoven tubes
Material Wooden case
Shape Book-shelf unit.
Dimensions (WHD) 450 x 180 x 230 mm / 17.7 x 7.1 x 9.1 inch
Notes A6X38AT is Philips' first solid state AM-FM Stereo tuner.
4 SW bands. Input for Wire Radio.
Matching amplifier AG9018 (ID= 123221).
Net weight (2.2 lb = 1 kg) 5.5 kg / 12 lb 1.8 oz (12.115 lb)
Literature/Schematics (1) -- Schematic

Model page created by Iven Müller. See "Data change" for further contributors.
