AC-mV-Meter PM2451

AC-mV-Meter PM2451; Philips; Eindhoven (ID = 297433) Equipment

AC-mV-Meter PM2451; Philips; Eindhoven (ID = 297434) Equipment

AC-mV-Meter PM2451; Philips; Eindhoven (ID = 297435) Equipment

AC-mV-Meter PM2451; Philips; Eindhoven (ID = 2152859) Equipment
AC-mV-Meter PM2451; Philips; Eindhoven (ID = 296979) Equipment AC-mV-Meter PM2451; Philips; Eindhoven (ID = 296980) Equipment
AC-mV-Meter PM2451; Philips; Eindhoven (ID = 296981) Equipment AC-mV-Meter PM2451; Philips; Eindhoven (ID = 296982) Equipment
AC-mV-Meter PM2451; Philips; Eindhoven (ID = 296983) Equipment AC-mV-Meter PM2451; Philips; Eindhoven (ID = 296984) Equipment
AC-mV-Meter PM2451; Philips; Eindhoven (ID = 1833341) Equipment AC-mV-Meter PM2451; Philips; Eindhoven (ID = 1833342) Equipment
Use red slider bar for more.
AC-mV-Meter PM2451; Philips; Eindhoven (ID = 296979) Equipment

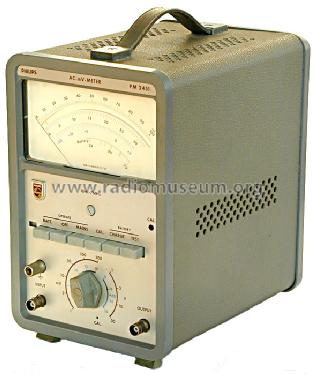

Philips; Eindhoven: AC-mV-Meter PM2451 [Equipment] ID = 296979 592x700
Select picture or schematic to display from thumbnails on the right and click for download.
For model AC-mV-Meter PM2451, Philips; Eindhoven (tubes international!); Miniwatt

Country:  Netherlands
Manufacturer / Brand:  Philips; Eindhoven (tubes international!); Miniwatt
Year: 1965/1966 Category: Service- or Lab Equipment
Semiconductors (the count is only for transistors) 17: 2N2386 AF121 AF185 BCZ11 AF126 ASY29 BCY34 AD139 BC107 AF185 BSY39
Wave bands - without
Details
Power type and voltage Line / Batteries (any type) / 110; 125; 145; 200; 220; 245 / 4 x 1,5 Volt
Loudspeaker - - No sound reproduction output.
Power out
from Radiomuseum.org Model: AC-mV-Meter PM2451 - Philips; Eindhoven tubes
Material Metal case
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 157 x 250 x 230 mm / 6.2 x 9.8 x 9.1 inch
Notes Messbereich: 1 mV ... 30 V, aufgeteilt in 10 Bereiche.
Frequenzbereich: 10 Hz ... 7 MHz
Eingangsimpedanz: 1 MOhm || 30 pF
Messgenauigkeit: ± 2 %.
Verwendungsmöglichkeit als Vorverstärker durch Verstärkerausgang mit:
Ri = 150 Ohm, 3 dB-Bandbreite 2 Hz ... 14 MHz.
Batteriegröße: Mono.
Einsatz von NiCd-Akkus möglich, die auch während des Betriebes aufgeladen werden können.
Einige Transistortypen mehrfach vorhanden.
Net weight (2.2 lb = 1 kg) 4.3 kg / 9 lb 7.5 oz (9.471 lb)
Literature/Schematics (1) -- Original-techn. papers.
Literature/Schematics (2) - - Manufacturers Literature (Katalog: Philips Industrie-Elektronik 1966)
