AC Röhrenvoltmeter GM6012

AC Röhrenvoltmeter GM6012; Philips; Eindhoven (ID = 1235223) Equipment AC Röhrenvoltmeter GM6012; Philips; Eindhoven (ID = 1235225) Equipment
AC Röhrenvoltmeter GM6012; Philips; Eindhoven (ID = 1235227) Equipment AC Röhrenvoltmeter GM6012; Philips; Eindhoven (ID = 1235228) Equipment
AC Röhrenvoltmeter GM6012; Philips; Eindhoven (ID = 1235230) Equipment
Use red slider bar for more.
AC Röhrenvoltmeter GM6012; Philips; Eindhoven (ID = 1235223) Equipment
Philips; Eindhoven: AC Röhrenvoltmeter GM6012 [Equipment] ID = 1235223 718x707
Select picture or schematic to display from thumbnails on the right and click for download.
For model AC Röhrenvoltmeter GM6012, Philips; Eindhoven (tubes international!); Miniwatt:

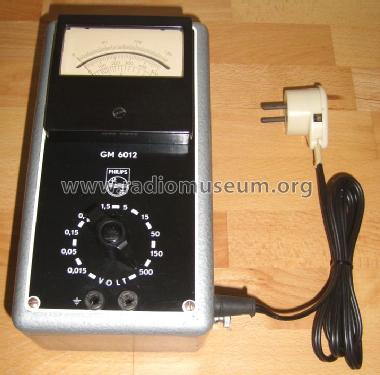

Eigene Sammlung. Frontansicht.

Country:  Netherlands
Manufacturer / Brand:  Philips; Eindhoven (tubes international!); Miniwatt
Year: 1953 ? Category: Service- or Lab Equipment
Valves / Tubes 2: EAA91 ECC81
Wave bands - without
Details
Power type and voltage Alternating Current supply (AC) / 220 Volt
Loudspeaker - - No sound reproduction output.
Power out
from Radiomuseum.org Model: AC Röhrenvoltmeter GM6012 - Philips; Eindhoven tubes
Material Metal case
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 120 x 230 x 100 mm / 4.7 x 9.1 x 3.9 inch
Notes AC-Röhrenvoltmeter in kleiner, kompakter Tischausführung; Messbereiche 15, 50, 150 und 500 mV; 1,5, 5, 15, 50, 150 und 500 V; Signaleingang über 4 mm-Bananenbuchsen frontseitig; Anzeige über Analog-Anzeigeinstrument mit Spiegelskala und zwei Skaleneinteilungen 150/500 plud dB-Skala.
Net weight (2.2 lb = 1 kg) 2.7 kg / 5 lb 15.2 oz (5.947 lb)

Model page created by Thomas Jennen. See "Data change" for further contributors.
