8 inch Octagonal Standard Loudspeaker AD8080 /M4 /M8

8 inch Octagonal Standard Loudspeaker AD8080 /M4 /M8; Philips; Eindhoven (ID = 2419450) Speaker-P

8 inch Octagonal Standard Loudspeaker AD8080 /M4 /M8; Philips; Eindhoven (ID = 2419451) Speaker-P

8 inch Octagonal Standard Loudspeaker AD8080 /M4 /M8; Philips; Eindhoven (ID = 2419452) Speaker-P
8 inch Octagonal Standard Loudspeaker AD8080 /M4 /M8; Philips; Eindhoven (ID = 1958557) Speaker-P 8 inch Octagonal Standard Loudspeaker AD8080 /M4 /M8; Philips; Eindhoven (ID = 1958558) Speaker-P
Use red slider bar for more.

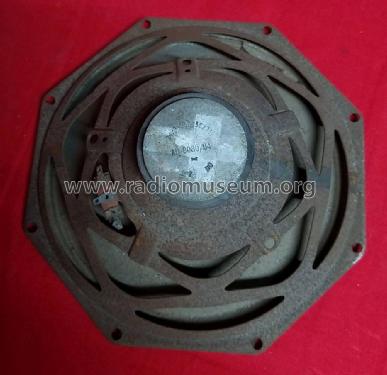

8 inch Octagonal Standard Loudspeaker AD8080 /M4 /M8; Philips; Eindhoven (ID = 1958557) Speaker-P
Philips; Eindhoven: 8 inch Octagonal Standard Loudspeaker AD8080 /M4 /M8 [Speaker-P] ID = 1958557 1400x1363
Select picture or schematic to display from thumbnails on the right and click for download.
For model 8 inch Octagonal Standard Loudspeaker AD8080 /M4 /M8, Philips; Eindhoven (tubes international!); Miniwatt

Country:  Netherlands
Manufacturer / Brand:  Philips; Eindhoven (tubes international!); Miniwatt
Year: 1973 Category: Loudspeaker, headphone or earphone
Wave bands - without
Details
Power type and voltage No Power needed
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 8 inch = 20.3 cm
Power out
from Radiomuseum.org Model: 8 inch Octagonal Standard Loudspeaker AD8080 /M4 /M8 - Philips; Eindhoven tubes
Material Metal case
Shape Chassis only or for «building in»
Dimensions (WHD) 191.6 x 205.7 x 68 mm / 7.5 x 8.1 x 2.7 inch
Notes

Philips 8 inch Octagonal Standard Loudspeaker type AD8080 /M

Available versions:

  • /M4:       Z= 4 Ω @ 75 Hz
  • /M8:       Z= 8 Ω @ 75 Hz

-  Dual cone full range speaker
-  frequency range 55 to 18,000 Hz
-  6 watts

Net weight (2.2 lb = 1 kg) 0.370 kg / 0 lb 13 oz (0.815 lb)
Mentioned in -- Original-techn. papers. (Miniwatt Copresa "Altavoces" 1973)

Model page created by George Papaiz. See "Data change" for further contributors.
