Adaptor Unit 32 V 137

Adaptor Unit 32 V 137; Philips Australia (ID = 2172877) Power-S

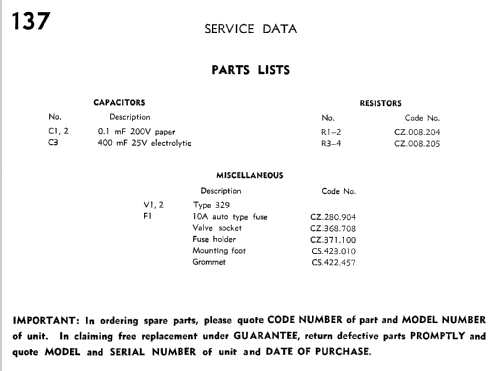

Adaptor Unit 32 V 137; Philips Australia (ID = 2172878) Power-S
Use red slider bar for more.
Adaptor Unit 32 V 137; Philips Australia (ID = 2172877) Power-S
Select picture or schematic to display from thumbnails on the right and click for download.

Country:  Australia
Manufacturer / Brand:  Philips Australia
Year: 1952 Category: Power supply/conditioner or battery or charger
Wave bands - without
Details
Power type and voltage Direct Current supply (DC) / 32 Volt
Loudspeaker - - No sound reproduction output.
Power out
from Radiomuseum.org Model: Adaptor Unit 32 V 137 - Philips Australia
Notes This is an adaptor unit used to power Philips model 117, 127 or 131 radios from a 32 volt farm lighting system in conjunction with a model 118 synchronous vibrator unit. It contains two current regulator tubes but the types are not specified on the circuit.
Circuit diagram reference Australian Official Radio Service Manual Vol. XI

Model page created by Stuart Irwin. See "Data change" for further contributors.
