Adjutant 22RL500

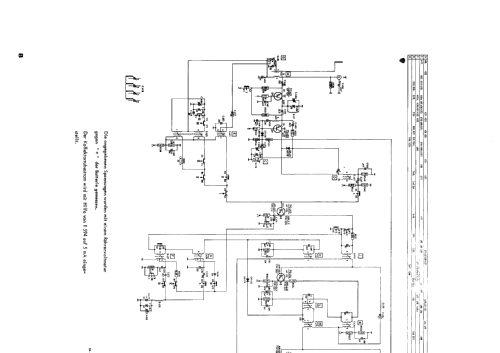

Adjutant 22RL500; Philips Radios - (ID = 112457) Radio

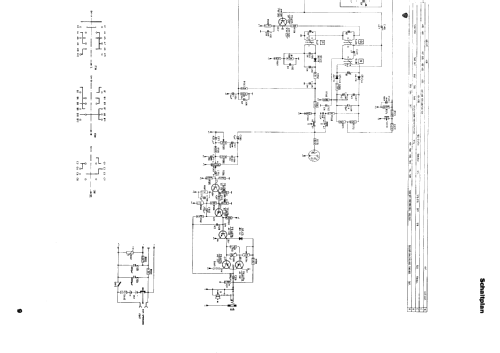

Adjutant 22RL500; Philips Radios - (ID = 112458) Radio

Adjutant 22RL500; Philips Radios - (ID = 260983) Radio

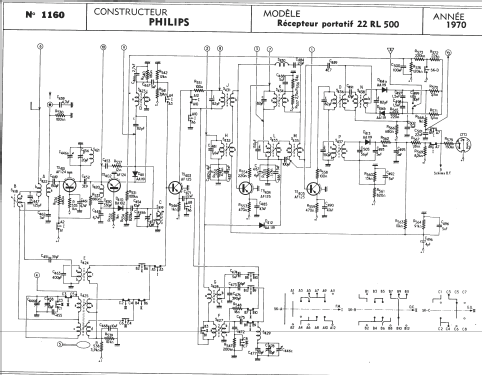

Adjutant 22RL500; Philips Radios - (ID = 260984) Radio

Adjutant 22RL500; Philips Radios - (ID = 260986) Radio

Adjutant 22RL500; Philips Radios - (ID = 260987) Radio

Adjutant 22RL500; Philips Radios - (ID = 2048031) Radio

Adjutant 22RL500; Philips Radios - (ID = 2048032) Radio

Adjutant 22RL500; Philips Radios - (ID = 2048033) Radio

Adjutant 22RL500; Philips Radios - (ID = 2048034) Radio

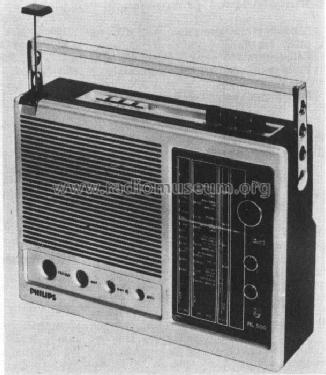

Adjutant 22RL500; Philips Radios - (ID = 381229) Radio Adjutant 22RL500; Philips Radios - (ID = 260988) Radio

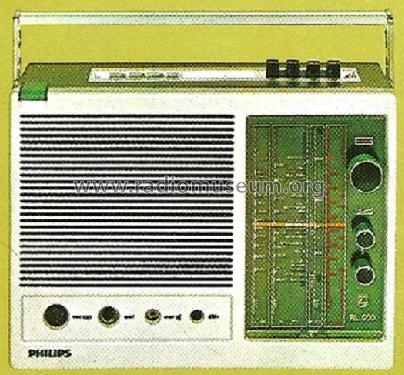

Adjutant 22RL500; Philips Radios - (ID = 1511734) Radio
Use red slider bar for more.
Adjutant 22RL500; Philips Radios - (ID = 381229) Radio
Philips Radios -: Adjutant 22RL500 [Radio] ID = 381229 659x700
Select picture or schematic to display from thumbnails on the right and click for download.
For model Adjutant 22RL500, Philips Radios - Deutschland

Country:  Germany
Manufacturer / Brand:  Philips Radios - Deutschland
Brand

Deutsche Philips-Ges.
Year: 1970/1971 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 10:
Main principle Superheterodyne (common); ZF/IF 460/10700 kHz
Tuned circuits 6 AM circuit(s)     8 FM circuit(s)
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details
Power type and voltage Dry Batteries / 4 × 1,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 10 cm = 3.9 inch
Power out 1 W (unknown quality)
from Radiomuseum.org Model: Adjutant 22RL500 - Philips Radios - Deutschland
Material Modern plastics (no Bakelite or Catalin)
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 218 x 305 x 85 mm / 8.6 x 12 x 3.3 inch
Notes Netzbetrieb mit zusätzlichem Netzteil möglich.
Net weight (2.2 lb = 1 kg) 2.4 kg / 5 lb 4.6 oz (5.286 lb)
External source of data Erb
Source of data Handbuch VDRG 1970/1971
