AE3625/00

AE3625/00; Philips Hong Kong (ID = 86541) Radio AE3625/00; Philips Hong Kong (ID = 659920) Radio
AE3625/00; Philips Hong Kong (ID = 1921505) Radio AE3625/00; Philips Hong Kong (ID = 1921504) Radio
AE3625/00; Philips Hong Kong (ID = 1596745) Radio AE3625/00; Philips Hong Kong (ID = 1596746) Radio
AE3625/00; Philips Hong Kong (ID = 1596747) Radio AE3625/00; Philips Hong Kong (ID = 1596748) Radio
AE3625/00; Philips Hong Kong (ID = 1596749) Radio AE3625/00; Philips Hong Kong (ID = 1596750) Radio
Use red slider bar for more.
AE3625/00; Philips Hong Kong (ID = 86541) Radio

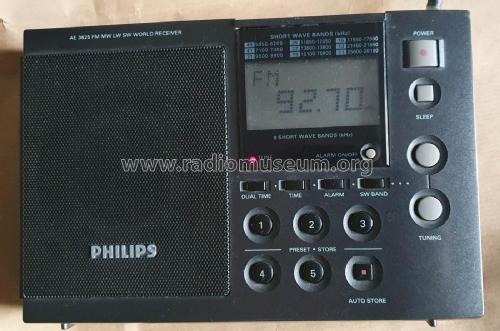

Philips Hong Kong: AE3625/00 [Radio] ID = 86541 655x561
Select picture or schematic to display from thumbnails on the right and click for download.
For model AE3625/00, Philips Hong Kong

Country:  Hong Kong
Manufacturer / Brand:  Philips Hong Kong
Year: 1993/1994 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) Semiconductors present.
Main principle Superheterodyne (common)
Wave bands Broadcast, Long Wave, more than 2 x SW plus FM or UHF.
Details
Power type and voltage Batteries / addl. power jack / AA: 4 × 1,5 / 6 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: AE3625/00 - Philips Hong Kong
Material Modern plastics (no Bakelite or Catalin)
Shape Very small Portable or Pocket-Set (Handheld) < 8 inch.
Dimensions (WHD) 180 x 120 x 40 mm / 7.1 x 4.7 x 1.6 inch
Notes

13 KW-Bänder, 11m - 120m, fünf Programm-Fixtasten für alle Frequenzbänder. Digitale Schaltuhr, FM-Suchlauf und automatische Abspeicherung auf die fünf Fixtasten.

Service documentation shows this model in production in March 31,1993 and lists an AM band interference noise problem coming from the synthesis IC on "issue 2 PCB". This documentation lists a fix for the problem and also states that the problem is resolved in production by using "issue 4 PCB" from production week 9307 onwards.

Another service document dated June 15, 1994 states that a new PCB assembly is used starting from week 9432 due to many changes in the circuit.

Thus we know that this model was in production in 1993 (and probably earlier) and also in 1994.

Model page created by Wolfgang Bauer. See "Data change" for further contributors.
