AE-2160/04

AE-2160/04; Philips 飞利浦; (ID = 1390841) Radio AE-2160/04; Philips 飞利浦; (ID = 1390842) Radio
AE-2160/04; Philips 飞利浦; (ID = 1390843) Radio AE-2160/04; Philips 飞利浦; (ID = 1390844) Radio
AE-2160/04; Philips 飞利浦; (ID = 1390845) Radio AE-2160/04; Philips 飞利浦; (ID = 1390846) Radio
AE-2160/04; Philips 飞利浦; (ID = 1390847) Radio AE-2160/04; Philips 飞利浦; (ID = 1521084) Radio
AE-2160/04; Philips 飞利浦; (ID = 1521085) Radio AE-2160/04; Philips 飞利浦; (ID = 2253163) Radio
Use red slider bar for more.

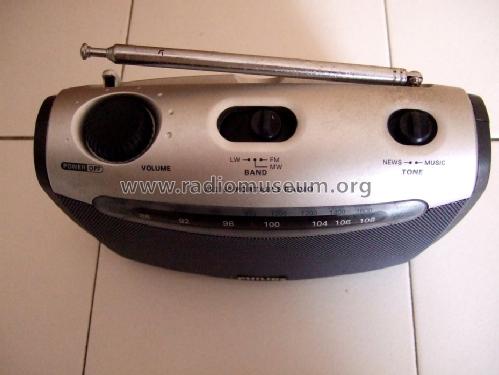

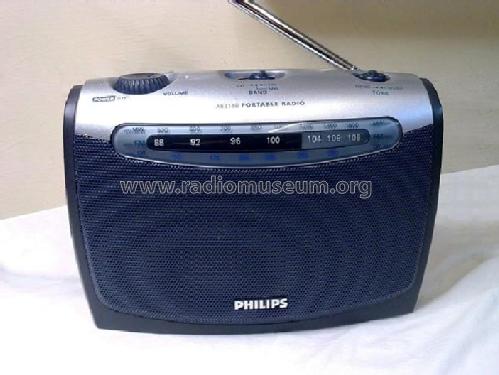

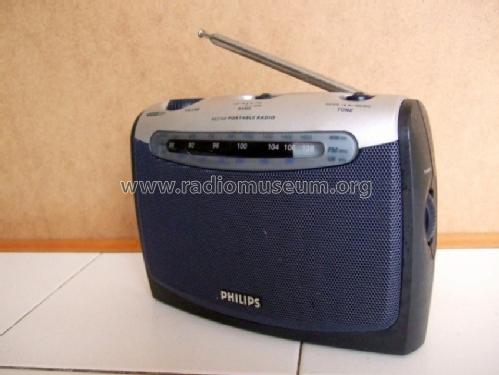

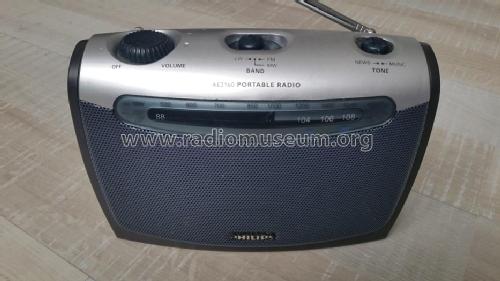

AE-2160/04; Philips 飞利浦; (ID = 1390841) Radio
Philips 飞利浦;: AE-2160/04 [Radio] ID = 1390841 849x637
Select picture or schematic to display from thumbnails on the right and click for download.
For model AE-2160/04, Philips 飞利浦; China

Country:  People's Republic of China
Manufacturer / Brand:  Philips 飞利浦; China
Year: 1994 ?? Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) Semiconductors present.
schematic requested
Main principle Superheterodyne (common)
Wave bands Broadcast, Long Wave and FM or UHF.
Details
Power type and voltage Line / Batteries (any type) / 220-230/ 2 x 1,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 8 cm = 3.1 inch
Power out
from Radiomuseum.org Model: AE-2160/04 - Philips 飞利浦; China
Material Modern plastics (no Bakelite or Catalin)
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 200 x 150 x 60 mm / 7.9 x 5.9 x 2.4 inch
Notes

Same as Philips AE-2160/00C, but with additional LW range.

Même type comme le Philips AE-2160/00C mais,  en plus il y a les Grandes Ondes (GO).

Net weight (2.2 lb = 1 kg) 0.8 kg / 1 lb 12.2 oz (1.762 lb)

Model page created by Bekir Yurdakul. See "Data change" for further contributors.
