• Country
• Germany

• Manufacturer / Brand
• Philips Radios - Deutschland

• Year
• 1965–1967

• Category
• Sound/Video Recorder and/or Player

• Radiomuseum.org ID
• 74756

• • Brand: Deutsche Philips-Ges.

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 4

• Semiconductors
• AC125 AC126 AC128 AC128

• Main principle
• Audio-Amplification; 3 AF stage(s)

• Wave bands
• - without

• Details
• Rec.Player+Audio.Amp+LS

• Power type and voltage
• Alternating Current supply (AC) / 110; 127; 220; 240 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Power out
• 1.5 W (unknown quality)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

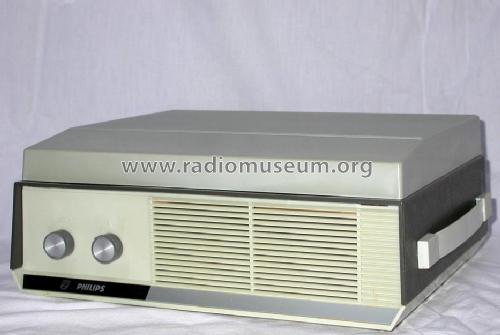

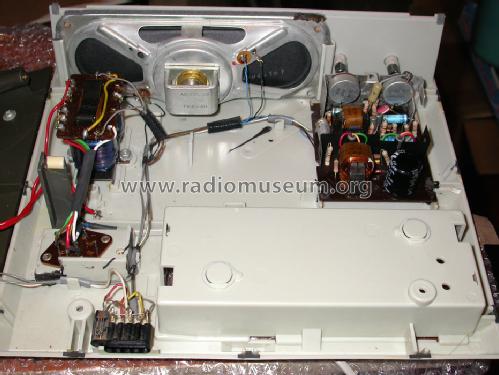

• Model: Electrophon SK54 AG4131 /22G Ch= AG2031 - Philips Radios - Deutschland

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 307 x 127 x 257 mm / 12.1 x 5 x 10.1 inch

• Notes
• Mono-Transistorschaltung mit Transformatorkopplung. Oval-Lautsprecher 7/19 cm.

• Net weight (2.2 lb = 1 kg)
• 3.2 kg / 7 lb 0.8 oz (7.048 lb)

• Source of data
• Handbuch VDRG 1965/1966

• Mentioned in
• -- Original-techn. papers.

• Literature/Schematics (1)
• -- Original-techn. papers.

• Other Models

• Here you find 2540 models, 2251 with images and 1555 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
