AG4656W /00

AG4656W /00; Philips; Eindhoven (ID = 813187) R-Player

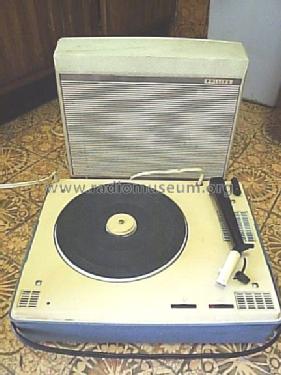

AG4656W /00; Philips; Eindhoven (ID = 146463) R-Player AG4656W /00; Philips; Eindhoven (ID = 645792) R-Player
AG4656W /00; Philips; Eindhoven (ID = 645793) R-Player AG4656W /00; Philips; Eindhoven (ID = 733889) R-Player
AG4656W /00; Philips; Eindhoven (ID = 733890) R-Player AG4656W /00; Philips; Eindhoven (ID = 733891) R-Player
AG4656W /00; Philips; Eindhoven (ID = 733892) R-Player AG4656W /00; Philips; Eindhoven (ID = 733894) R-Player
AG4656W /00; Philips; Eindhoven (ID = 733895) R-Player AG4656W /00; Philips; Eindhoven (ID = 733896) R-Player
Use red slider bar for more.
AG4656W /00; Philips; Eindhoven (ID = 146463) R-Player
Philips; Eindhoven: AG4656W /00 [R-Player] ID = 146463 711x694
Select picture or schematic to display from thumbnails on the right and click for download.
For model AG4656W /00, Philips; Eindhoven (tubes international!); Miniwatt

Country:  Netherlands
Manufacturer / Brand:  Philips; Eindhoven (tubes international!); Miniwatt
Year: 1964 ? Category: Sound/Video Recorder and/or Player
Valves / Tubes 2: UCL82 UY85
Main principle Audio-Amplification
Wave bands - without
Details Rec.Player+Audio.Amp+LS
Power type and voltage Alternating Current supply (AC) / 110-127 / 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 15 cm = 5.9 inch
Power out 1.8 W (unknown quality)
from Radiomuseum.org Model: AG4656W /00 - Philips; Eindhoven tubes
Material Modern plastics (no Bakelite or Catalin)
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 350 x 160 x 280 mm / 13.8 x 6.3 x 11 inch
Notes Available in two versions:
1- Two tons of Gray
2- Light gray.
Power consumption: 34W.
4-speed turntable: 16, 33, 45 and 78 rpm.
150mm diameter PM speaker in lid. Portable set.
Net weight (2.2 lb = 1 kg) 3 kg / 6 lb 9.7 oz (6.608 lb)
Source of data -- Original prospect or advert
Literature/Schematics (1) -- Original-techn. papers.

Model page created by Mario Coelho. See "Data change" for further contributors.



All listed radios etc. from Philips; Eindhoven (tubes international!); Miniwatt
Here you find 4865 models, 4080 with images and 3273 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.






Forum contributions about this model
Philips; Eindhoven: AG4656W /00
Threads: 1 | Posts: 2
Hits: 3041     Replies: 1
philips: AG4656 (AG 4656);
Nigel Hulse
25.Jul.09
  1

Some additional information on the AG 4656W/00 :

Power consumption: 34W

4-speed turntable: 16, 33. 45 and 78 rpm

Valves: UCL82 and UY85

 150mm diameter PM speaker in lid

Dimensions: 350mm X 280mm X 160mm

Weight: 3kg

Date of purchase: February 1964



Bernhard Nagel
25.Jul.09
  2

Dear Nigel,

thanks for these additional facts about this Philips Record Player AG4656!

You may add these valuable informations direct to the model page. The link "Suggest change" at the bottom of each model page allows the RMorg members to make the change proposals. First, the model change history will come up, then you click "Suggest a change". In the following page, you fill in your changes, specify in short where you've got the informations (sources). When complete, click "GO".

Two model admins will check your input and confirm if ok. Please ty it, it's easy!

Best regards, Bernhard
