Philips; Eindhoven: AG5957 /22 [R-Player] ID = 468206 933x699
Select picture or schematic to display from thumbnails on the right and click for download.
For model AG5957 /22, Philips; Eindhoven (tubes international!); Miniwatt

Country:  Netherlands
Manufacturer / Brand:  Philips; Eindhoven (tubes international!); Miniwatt
Year: 1966 Category: Sound/Video Recorder and/or Player
Semiconductors (the count is only for transistors) 12: AC126 AC126 AC126 AC126 AC126 AC126 AC126 AC126 AD149 AD149 AD149 AD149 BY100 BY100 OAZ207 OAZ207
Main principle Audio-Amplification; 5 AF stage(s)
Wave bands - without
Details Rec.Player+Audio.Amp+LS
Power type and voltage Alternating Current supply (AC) / 110; 127; 220; 240 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 14.5 cm = 5.7 inch
Power out 8 W (unknown quality)
from Radiomuseum.org Model: AG5957 /22 - Philips; Eindhoven tubes
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 417 x 260 x 205 mm / 16.4 x 10.2 x 8.1 inch
Notes

Vollstereo-Gerät AG5957/22 mit 2 abnehmbaren Lautsprechern.
Phonochassis mit 16, 33, 45 und 78 rpm, Typ AG2056.
System Tonkopf: AG3306 oder AG3310.
Phonoarm für Handbetrieb mit Endschalter.
Lautsprecher: AD3706RM.

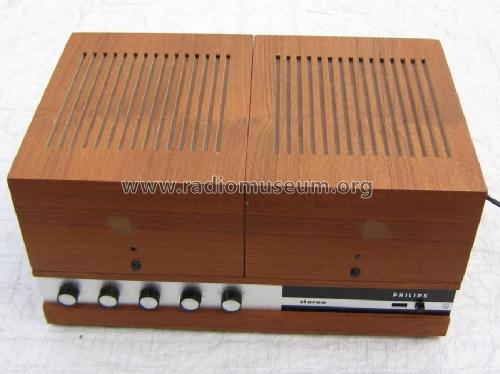

Stereo record player with 2 detachable loudspeakers.
4-speed chassis type AG2056.
Pick-Up element on this unit: AG3306 or AG3310.
Pick-Up arm for manual start and with end-of-disc switch.
Loudspeaker: AD3706RM.

Price in first year of sale 446.00 F

Model page created by Hans-Werner Ellerbrock. See "Data change" for further contributors.
