- Country
- Netherlands
- Manufacturer / Brand
- Philips; Eindhoven (tubes international!); Miniwatt
- Year
- 1992
- Category
- Sound/Video Recorder and/or Player
- Radiomuseum.org ID
- 288816

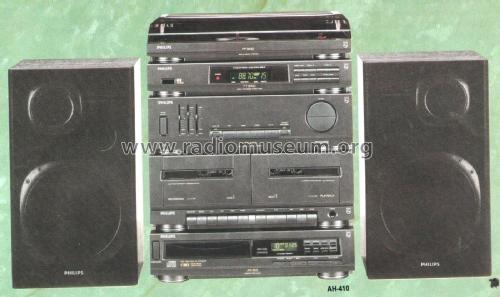

Foto Catalogo Philips
- Number of Transistors
- Semiconductors present.
- Semiconductors
- Main principle
- PLL, Phase-locked loop
- Wave bands
- Broadcast, Long Wave and FM or UHF.
- Details
- Cassette-Recorder or -Player
- Power type and voltage
- Alternating Current supply (AC) / 220 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Power out
- 30 W (unknown quality)
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: AH410 - Philips; Eindhoven tubes
- Shape
- Tablemodel, low profile (big size).
- Dimensions (WHD)
- 360 x 445 x 375 mm / 14.2 x 17.5 x 14.8 inch
- Notes
-
Midi System, MW, LW, FM, digital quartz PLL 20 presets, CD, cdm-4 laser pick-up, 16 bit frequency 20-20000 Hz, 70dB ( 1 kHz ), channel separation, semiconductor laser, turntable autoreturn, transmission belt, DC motor, frequency 20-20000 Hz, Double deck cassettes frequency 80-12000Hz, signal ratio 45 dB, Power output 2x15 W RMS, frequency 50-20000 Hz, frequency of the egualyzer +/- 10 dB in 100, 1000 and 10000 Hz, DBB + 8 dB at 60 Hz, input phono, cd, tv, aux, impedance output 2x8 Ohms, output headphones, remote control, 2 way acoustic boxes, bassreflex, mid 5" and 1" piezoelectric speakers, frequency 40-20000 Hz, dimensions 220x385x160mm.
- Mentioned in
- - - Manufacturers Literature
- Author
- Model page created by Manuel Albano Neves. See "Data change" for further contributors.
