AJ 3120/00

AJ 3120/00; Philips 飞利浦; (ID = 434086) Radio AJ 3120/00; Philips 飞利浦; (ID = 1724241) Radio
AJ 3120/00; Philips 飞利浦; (ID = 434087) Radio AJ 3120/00; Philips 飞利浦; (ID = 1724240) Radio
AJ 3120/00; Philips 飞利浦; (ID = 1724242) Radio
Use red slider bar for more.
AJ 3120/00; Philips 飞利浦; (ID = 434086) Radio

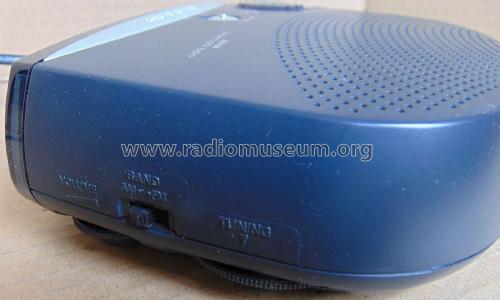

Philips 飞利浦;: AJ 3120/00 [Radio] ID = 434086 783x418
Select picture or schematic to display from thumbnails on the right and click for download.
For model AJ 3120/00, Philips 飞利浦; China

Country:  People's Republic of China
Manufacturer / Brand:  Philips 飞利浦; China
Year: 1980 ?? Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 2:
schematic requested
Main principle Superheterodyne (common)
Wave bands Broadcast (BC) and FM or UHF.
Details
Power type and voltage Line / Batteries (any type) / 220; 9 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 6.5 cm = 2.6 inch
Power out 0.5 W (unknown quality)
from Radiomuseum.org Model: AJ 3120/00 - Philips 飞利浦; China
Material Modern plastics (no Bakelite or Catalin)
Shape Tablemodel with Clock ((Alarm-) Clock Radio).
Dimensions (WHD) 185 x 65 x 145 mm / 7.3 x 2.6 x 5.7 inch
Notes ICs: TA7368, TA2132, LM8560.
Source of data - - Data from my own collection

Model page created by Bernd Pötzsch. See "Data change" for further contributors.
