AL065 90AL065; Philips Hong Kong (ID = 1527787) Radio

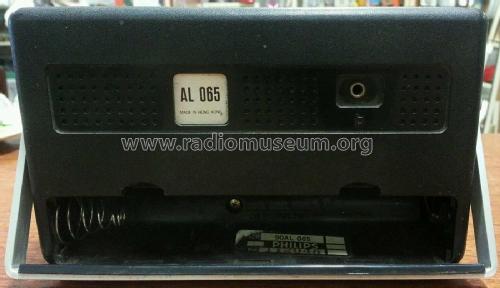

Philips Hong Kong: AL065 90AL065 [Radio] ID = 1527787 930x584
Select picture or schematic to display from thumbnails on the right and click for download.
For model AL065 90AL065, Philips Hong Kong:
Radio ready for storage. Mechanical problems fixed. There were no electronic problems.

Country:  Hong Kong
Manufacturer / Brand:  Philips Hong Kong
Year: 1976 ?? Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 8: KM902 KM902 KM902 KM903 KM903 KM903 KM055 KM066 CDG00
Main principle Superheterodyne (common)
Tuned circuits 5 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage Dry Batteries / 3 x 1.5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 7 cm = 2.8 inch
Power out
from Radiomuseum.org Model: AL065 90AL065 - Philips Hong Kong
Material Plastics (no bakelite or catalin)
Shape Very small Portable or Pocket-Set (Handheld) < 8 inch.
Dimensions (WHD) 168 x 100 x 50 mm / 6.6 x 3.9 x 2 inch
Notes

A large "Pocket Portable" which is AM only. With 8 silicon transistors, the perfornance should be good but the sensitivity is limited by the short (90 mm) ferrite rod antenna. Unlike earlier portable radios there is no provision for either external aerial or earth. Volume of output is limited by the ues of 3 "C" cells given a maximum operating voltage of only 4.5 volts. The speaker is drven directly from the pair of output transistors and has an impedance of 8 Ohms. The speaker is also rated at 0.6 Watts.

There is one unmarked diode.

The circuit board is obviously designed to serve in a number of models as there are drilled holes to allow a number of extra components to be installed, particularly around the RF and IF stages.

The dimensions do not include the handle and the weight is without batteries.

Net weight (2.2 lb = 1 kg) 0.4 kg / 0 lb 14.1 oz (0.881 lb)

Model page created by Brian Wilson. See "Data change" for further contributors.
