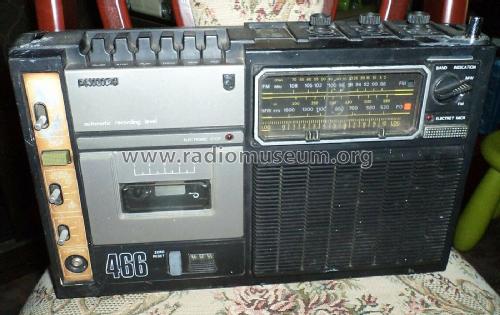

AM FM Radio Cassette Recorder 90AR466 /45R
Philips, Singapore
- Country
- Singapore
- Manufacturer / Brand
- Philips, Singapore
- Year
- 1976–1978
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 328943
- Number of Transistors
- 25
- Semiconductors
- BF494 BF494 BF494 BF494 BF494 BF494 BF495 BC549 BC548 BC548 BC548 BC548 BC548 BC548 BC548 BC548 BC338 BC368 BC369 AC127 AC128 BD136
- Main principle
- Superheterodyne (common); ZF/IF 455/10700 kHz
- Wave bands
- Broadcast (BC) and FM or UHF.
- Details
- Cassette-Recorder or -Player
- Power type and voltage
- Line / Batteries (any type) / 110-127 / 220-240 / D: 6 x 1.5 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Power out
- 1.5 W (undistorted)
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: AM FM Radio Cassette Recorder 90AR466 /45R - Philips, Singapore
- Shape
- Portable set > 8 inch (also usable without mains)
- Dimensions (WHD)
- 340 x 206 x 87 mm / 13.4 x 8.1 x 3.4 inch
- Notes
-
MW/FM AC/battery cassette recorder with, built-in microphone, auto stop, digital counter, bass and treble, mic. mixing, CrO2 switch.
This model is supplied with a mains lead fitted with an Australian/New Zealand Type I plug.
- Price in first year of sale
- 109.00 AUS $
- Mentioned in
- Mingay's Price Service (Feb 1977 to Aug 1978.)
- Author
- Model page created by Martin Kent. See "Data change" for further contributors.
