AM/FM-Stereo-Steuergerät GH930

AM/FM-Stereo-Steuergerät GH930; Philips Radios - (ID = 114645) Radio
Use red slider bar for more.
AM/FM-Stereo-Steuergerät GH930; Philips Radios - (ID = 114645) Radio

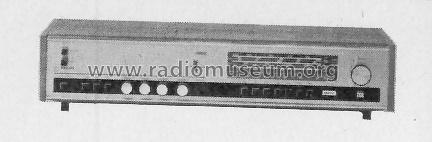

Philips Radios -: AM/FM-Stereo-Steuergerät GH930 [Radio] ID = 114645 432x142
Select picture or schematic to display from thumbnails on the right and click for download.
For model AM/FM-Stereo-Steuergerät GH930, Philips Radios - Deutschland

Country:  Germany
Manufacturer / Brand:  Philips Radios - Deutschland
Brand

Deutsche Philips-Ges.
Year: 1966–1968 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 30:
Main principle Superheterodyne (common); ZF/IF 460/10700 kHz
Tuned circuits 9 AM circuit(s)     11 FM circuit(s)
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 110; 127; 220; 240 Volt
Loudspeaker - This model requires external speaker(s).
Power out
from Radiomuseum.org Model: AM/FM-Stereo-Steuergerät GH930 - Philips Radios - Deutschland
Material Wooden case
Shape Book-shelf unit.
Dimensions (WHD) 655 x 145 x 220 mm / 25.8 x 5.7 x 8.7 inch
Notes Stereo-Tuner-Verstärker. NF-Verstärker mit 2 Endstufen je 12 W (Musik).
Net weight (2.2 lb = 1 kg) 8 kg / 17 lb 9.9 oz (17.621 lb)
External source of data erb
Source of data Handbuch VDRG 1966/1967
