Amplifier 13W PA M386

Amplifier 13W PA M386; Philips Australia (ID = 2395558) Ampl/Mixer Amplifier 13W PA M386; Philips Australia (ID = 2395560) Ampl/Mixer
Amplifier 13W PA M386; Philips Australia (ID = 2395559) Ampl/Mixer Amplifier 13W PA M386; Philips Australia (ID = 2395561) Ampl/Mixer
Use red slider bar for more.
Amplifier 13W PA M386; Philips Australia (ID = 2395558) Ampl/Mixer
Philips Australia: Amplifier 13W PA M386 [Ampl/Mixer] ID = 2395558 1024x716
Select picture or schematic to display from thumbnails on the right and click for download.
For model Amplifier 13W PA M386, Philips Australia:

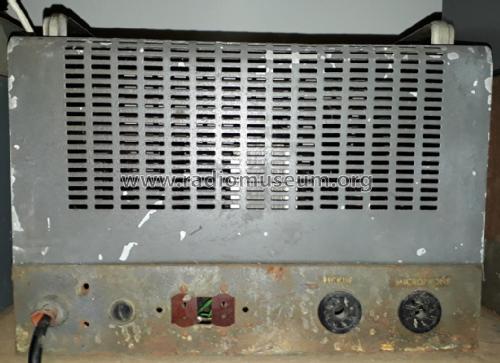

Philips M386 Front

Country:  Australia
Manufacturer / Brand:  Philips Australia
Year: 1945 ?? Category: Audio Amplifier or -mixer
Valves / Tubes 6: 6C6 6C6 6C6 6V6G 6V6G 5Y3GT
Main principle Audio-Amplification
Details
Power type and voltage Alternating Current supply (AC) / 240 Volt
Loudspeaker - This model requires external speaker(s).
Power out 13 W (max.)
from Radiomuseum.org Model: Amplifier 13W PA M386 - Philips Australia
Material Metal case
Shape Tablemodel, with any shape - general.
Notes

This unit is awaiting fitting of correct power transformer

Model page created by Joshua Boxer. See "Data change" for further contributors.
