Amplifier 30W 956A

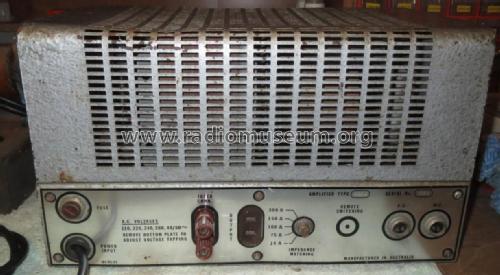

Amplifier 30W 956A; Philips Australia (ID = 2614520) Ampl/Mixer Amplifier 30W 956A; Philips Australia (ID = 2614521) Ampl/Mixer
Amplifier 30W 956A; Philips Australia (ID = 2614522) Ampl/Mixer Amplifier 30W 956A; Philips Australia (ID = 2614523) Ampl/Mixer
Amplifier 30W 956A; Philips Australia (ID = 2614711) Ampl/Mixer
Use red slider bar for more.
Amplifier 30W 956A; Philips Australia (ID = 2614520) Ampl/Mixer
Philips Australia: Amplifier 30W 956A [Ampl/Mixer] ID = 2614520 1229x701
Select picture or schematic to display from thumbnails on the right and click for download.
For model Amplifier 30W 956A, Philips Australia:
Philips 956A Front

Country:  Australia
Manufacturer / Brand:  Philips Australia
Year: 1955 Category: Audio Amplifier or -mixer
Valves / Tubes 6: GZ32 6N8 6N8 ECC33 6CA7 6CA7
Main principle Audio-Amplification
Details
Power type and voltage Alternating Current supply (AC) / 110, 220, 240, 260 Volt
Loudspeaker - This model requires external speaker(s).
Power out 30 W (max.)
from Radiomuseum.org Model: Amplifier 30W 956A - Philips Australia
Material Metal case
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 360 x 200 x 200 mm / 14.2 x 7.9 x 7.9 inch
Notes

Date obtained Radio, Television and Hobbies, July 1955, Page 84

Net weight (2.2 lb = 1 kg) 13.6 kg / 29 lb 15.3 oz (29.956 lb)

Model page created by Joshua Boxer. See "Data change" for further contributors.
