Amplifier 60W PA EV4416

Amplifier 60W PA EV4416; Philips Australia (ID = 2396825) Ampl/Mixer

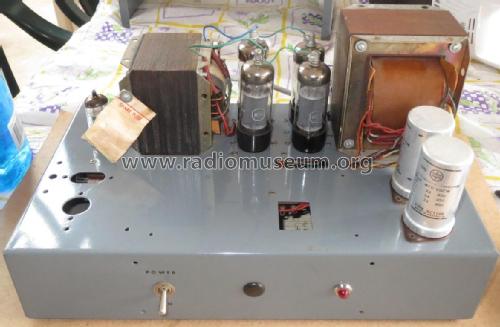

Amplifier 60W PA EV4416; Philips Australia (ID = 2396821) Ampl/Mixer Amplifier 60W PA EV4416; Philips Australia (ID = 2396822) Ampl/Mixer
Amplifier 60W PA EV4416; Philips Australia (ID = 2396823) Ampl/Mixer Amplifier 60W PA EV4416; Philips Australia (ID = 2396824) Ampl/Mixer
Use red slider bar for more.
Amplifier 60W PA EV4416; Philips Australia (ID = 2396821) Ampl/Mixer
Philips Australia: Amplifier 60W PA EV4416 [Ampl/Mixer] ID = 2396821 1321x768
Select picture or schematic to display from thumbnails on the right and click for download.
For model Amplifier 60W PA EV4416, Philips Australia:

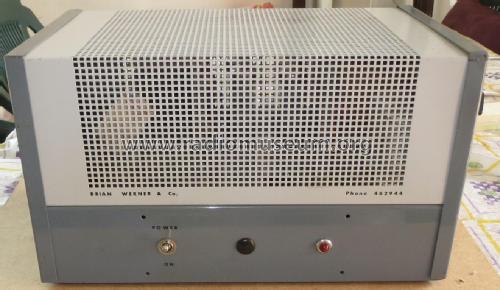

Philips EV4416 Front

Country:  Australia
Manufacturer / Brand:  Philips Australia
Year: 1968 ?? Category: Audio Amplifier or -mixer
Valves / Tubes 5: 12AX7 6CM5 6CM5 6CM5 6CM5
Main principle Audio-Amplification
Details
Power type and voltage Alternating Current supply (AC) / 220, 240, 260 Volt
Loudspeaker - This model requires external speaker(s).
Power out 60 W (max.)
from Radiomuseum.org Model: Amplifier 60W PA EV4416 - Philips Australia
Material Metal case
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 360 x 210 x 210 mm / 14.2 x 8.3 x 8.3 inch
Notes

This is a 60W slave amplifier that could be driven by a mixer or a specific 2V tap on the output transformer of other EV series mixer amplifiers.

Frequently the slave amplifiers were supplied with a mixer amplifier schematic on the bottom plate as the circuit was the same but the slave started after the Potentiometer of input 2.

Net weight (2.2 lb = 1 kg) 11 kg / 24 lb 3.7 oz (24.229 lb)
